SKU: MP-10F-MB

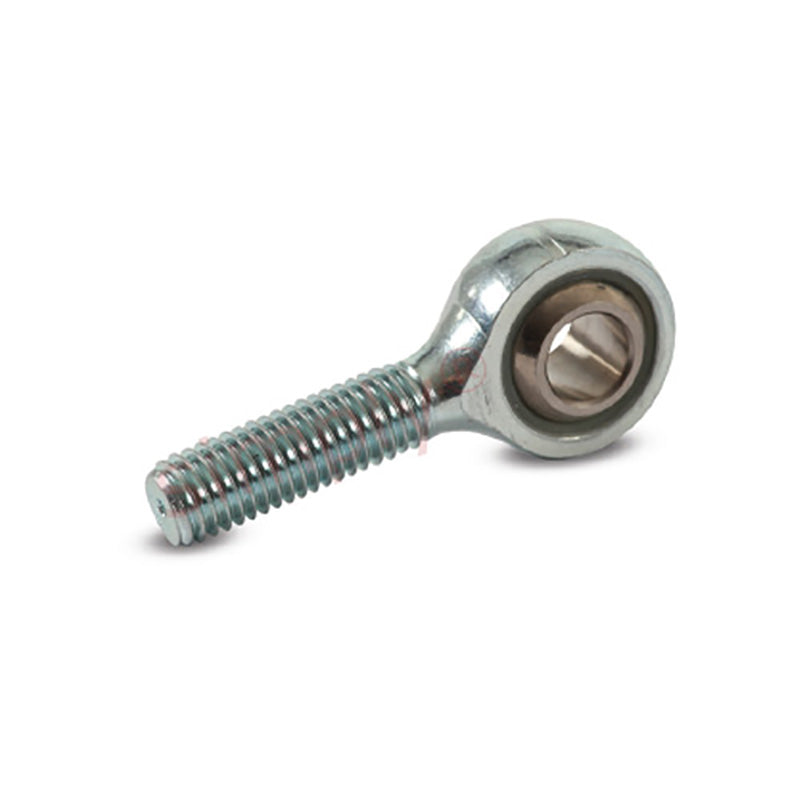

Branded MP-10F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days
Branded MP-10F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days
Regular price
€30,84
ex VAT
Regular price
Sale price
€30,84
ex VAT
In stock
Price Break
10+
€23,49
19+
€22,17
29+
€21,90
39+
€21,64
49+
€21,38
74+
€21,11
99+
€19,79
199+
€19,53
249+
€19,26
499+
€19,00
999+
€18,47
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 5/8 BSF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 5/8 inch |
|---|---|
| Thread | 5/8 BSF |
| W | 0.75 inch |
| H | 0.562 inch |
| D | 1.5 inch |
| L1 | 2.625 inch |
| L2 | 1.625 inch |
| O | 0.811 inch |
| Static load | 32000 N |
