SKU: MP-05-MB

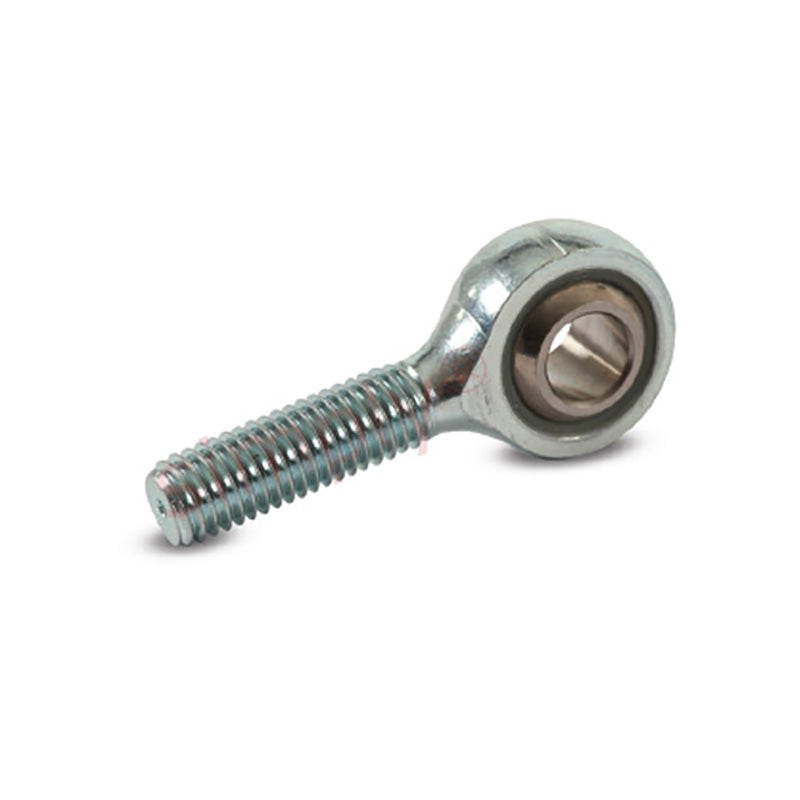

Branded MP-05 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 5/16 UNF Thread - Allow 7-10 Days
Branded MP-05 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 5/16 UNF Thread - Allow 7-10 Days
Regular price
€9,65
ex VAT
Regular price
Sale price
€9,65
ex VAT
In stock
Price Break
10+
€7,35
19+
€6,94
29+
€6,86
39+
€6,77
49+
€6,69
74+
€6,61
99+
€6,20
199+
€6,11
249+
€6,03
499+
€5,95
999+
€5,78
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 5/16 UNF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 7.93mm = 0.312 (5/16) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 5/16 inch |
|---|---|
| Thread | 5/16 UNF |
| W | 0.437 inch |
| H | 0.344 inch |
| D | 0.875 inch |
| L1 | 1.875 inch |
| L2 | 1.25 inch |
| O | 0.447 inch |
| Static load | 12010 N |
