SKU: MFC90-RHP

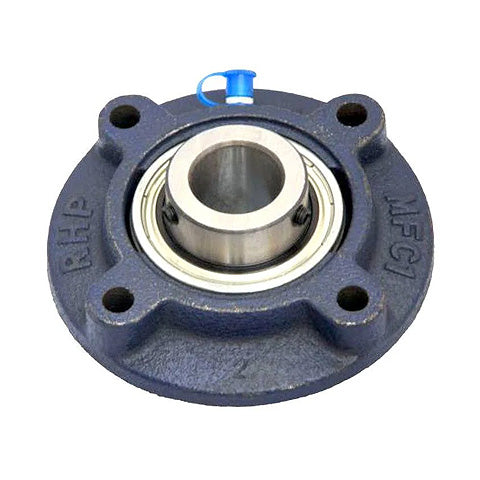

RHP MFC90 Four Bolt Round Cast Iron Flanged Bearing Unit and 90mm Insert

RHP MFC90 Four Bolt Round Cast Iron Flanged Bearing Unit and 90mm Insert
Regular price €586,22 ex VAT
Regular price Sale price €586,22 ex VAT
Sale Sold out

In stock

Price Break
10+ €446,47
20+ €421,39
30+ €416,37
40+ €411,35
50+ €406,34
75+ €401,32
100+ €376,24
200+ €371,22
250+ €366,20
500+ €361,19
1000+ €351,15
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

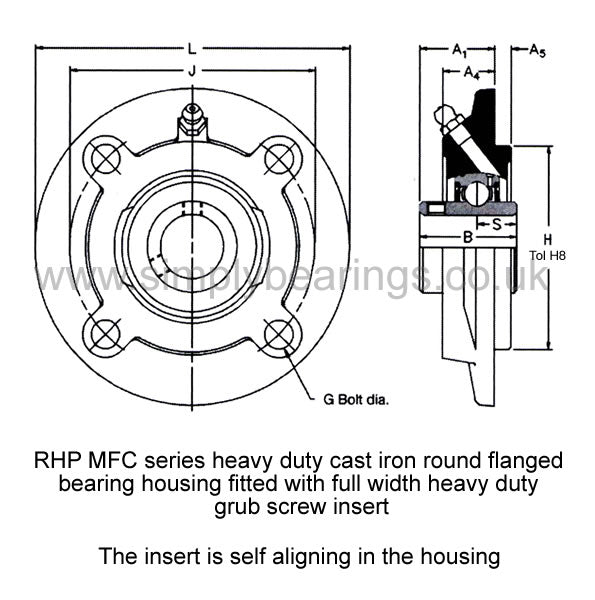

Bore 90mm
L 260.4mm
H 187.32mm
J 219.08mm
G 20mm
A1 67.46mm
A4 29.4mm
A5 12.7mm
B 96.04mm
s 39.73mm
d1 111.66mm
Dynamic load 96000 N
Static load 71500 N
Rec max speed 1900 rpm
Weight 9.8 kg
Insert <a href="advanced_search_result.php?keywords=1090-90G+insonly">1090-90G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
