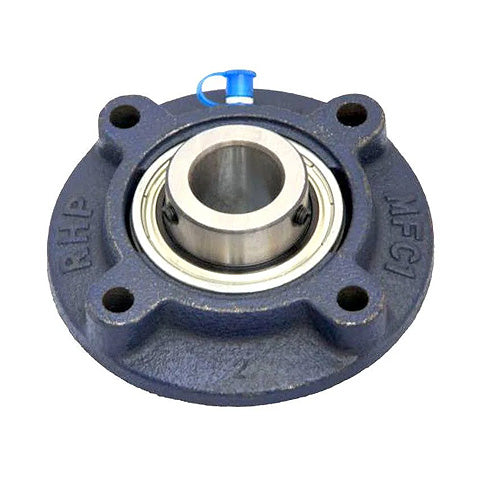

RHP MFC80 Four Bolt Round Cast Iron Flanged Bearing Unit and 80mm Insert
RHP MFC80 Four Bolt Round Cast Iron Flanged Bearing Unit and 80mm Insert
Regular price
€252,01
ex VAT
Regular price
Sale price
€252,01
ex VAT
In stock
Price Break
10+
€224,29
19+
€211,69
29+
€209,17
39+
€206,65
49+
€204,13
74+
€201,61
99+
€189,01
199+
€186,49
249+
€183,97
499+
€181,45
999+
€176,41
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80mm
- Style:
- MFC
- Pitch Circle Diameter:
- 190.5mm
Technical
Technical
| Bore | 80mm |
|---|---|
| L | 222.2mm |
| H | 161.92mm |
| J | 190.5mm |
| G | 16mm |
| A1 | 50.8mm |
| A4 | 16.7mm |
| A5 | 12.7mm |
| B | 82.55mm |
| s | 33.37mm |
| d1 | 98.5mm |
| Dynamic load | 71500 N |
| Static load | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-80G+insonly">1080-80G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
