SKU: MFC60-RHP
RHP MFC60 Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP MFC60 Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
Regular price
€246,60
ex VAT
Regular price
Sale price
€246,60
ex VAT
In stock
Price Break
10+
€219,47
19+
€207,14
29+
€204,68
39+
€202,21
49+
€199,75
74+
€197,28
99+
€184,95
199+
€182,48
249+
€180,02
499+
€177,55
999+
€172,62
Couldn't load pickup availability
Description
Description
|

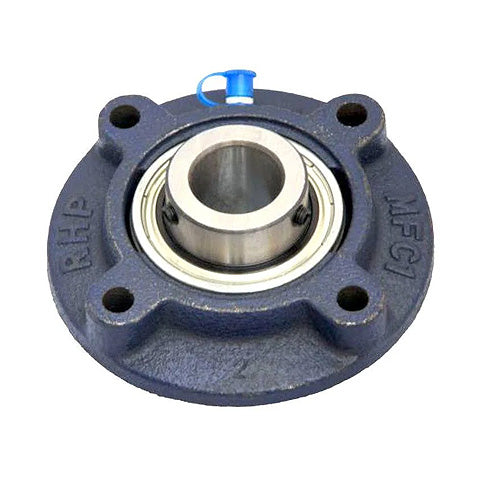

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- MFC
- Pitch Circle Diameter:
- 165.1mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 193.7mm |
| H | 139.7mm |
| J | 165.1mm |
| G | 12mm |
| A1 | 46.02mm |
| A4 | 15.9mm |
| A5 | 12.7mm |
| B | 74.63mm |
| s | 30.23mm |
| d1 | 87mm |
| Dynamic load | 61000 N |
| Static load | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 4.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-60G+insonly">1070-60G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
