SKU: MFC40-RHP

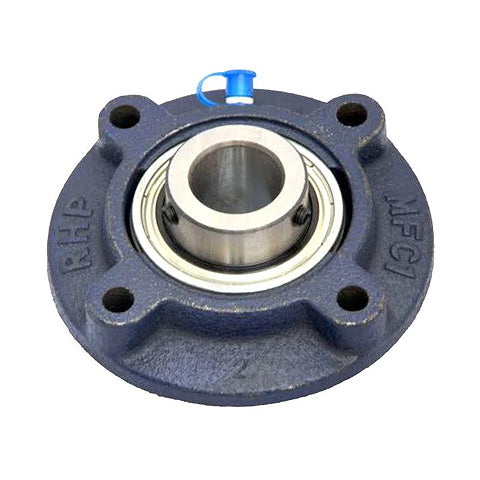

RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert

RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price €105,94 ex VAT
Regular price Sale price €105,94 ex VAT
Sale Sold out

In stock

Price Break
10+ €80,69
20+ €76,15
30+ €75,25
40+ €74,34
50+ €73,44
75+ €72,53
100+ €68,00
200+ €67,09
250+ €66,18
500+ €65,28
1000+ €63,46
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 40mm
L 133.4mm
H 92.07mm
J 111.12mm
G 10mm
A1 38.1mm
A4 19mm
A5 6.4mm
B 49.23mm
s 19.1mm
d1 52.7mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.9 kg
Insert <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
