SKU: MFC25-RHP

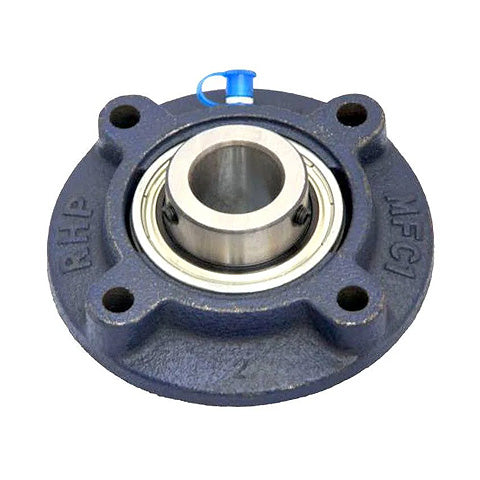

RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Regular price
€85,76
ex VAT
Regular price
Sale price
€85,76
ex VAT
In stock
Price Break
10+
€65,32
20+
€61,65
30+
€60,91
40+
€60,18
50+
€59,45
75+
€58,71
100+
€55,04
200+
€54,31
250+
€53,57
500+
€52,84
1000+
€51,37
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- MFC
- Pitch Circle Diameter:
- 92.08mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 111.1mm |
| H | 76.2mm |
| J | 92.08mm |
| G | 8mm |
| A1 | 33.32mm |
| A4 | 21mm |
| A5 | 6.4mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
