SKU: M802048/011/QCL7C-SKF

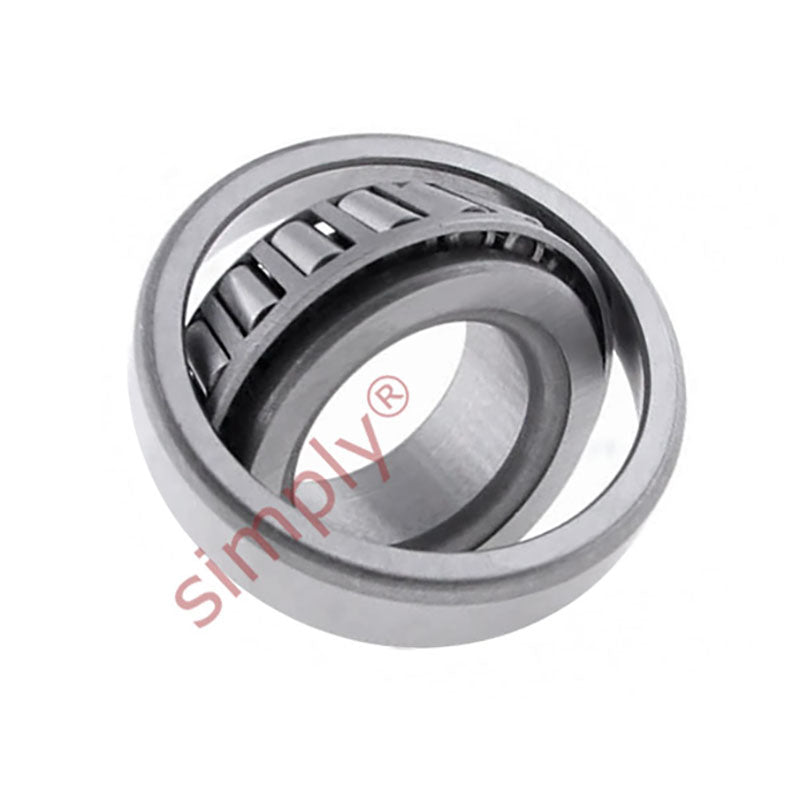

SKF M802048/011/QCL7C Imperial Taper Roller Bearing 1.625x3.25x1.045 inches
SKF M802048/011/QCL7C Imperial Taper Roller Bearing 1.625x3.25x1.045 inches
Regular price
€31,79
ex VAT
Regular price
Sale price
€31,79
ex VAT
In stock
Price Break
10+
€24,21
19+
€22,85
29+
€22,57
39+
€22,30
49+
€22,03
74+
€21,76
99+
€20,40
199+
€20,13
249+
€19,85
499+
€19,58
999+
€19,04
Share this product
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Width:
- 26.54mm = 1.045 inch
- Seals / Shields:
- None
Technical
Technical
| d | 41.275mm |
|---|---|
| D | 82.55mm |
| T | 26.543mm |
| Dynamic load | 73.7 kN |
| Static load | 91.5 kN |
| Fatigue load limit Pu | 10.6 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.62 kg |
| d1 | 62.5mm |
| B | 25.654mm |
| C | 20.193mm |
| r1r2 min | 3.5mm |
| r3r4 min | 3.3mm |
| a | 22mm |
| da max | 50mm |
| db min | 52.5mm |
| Da min | 66mm |
| Da max | 71mm |
| Db min | 78mm |
| Ca min | 4mm |
| Cb min | 6mm |
| ra max | 3mm |
| rb max | 3mm |
| Calculation factor e | 0.54 |
| Calculation factor Y | 1.1 |
| Calculation factor Y0 | 0.6 |
