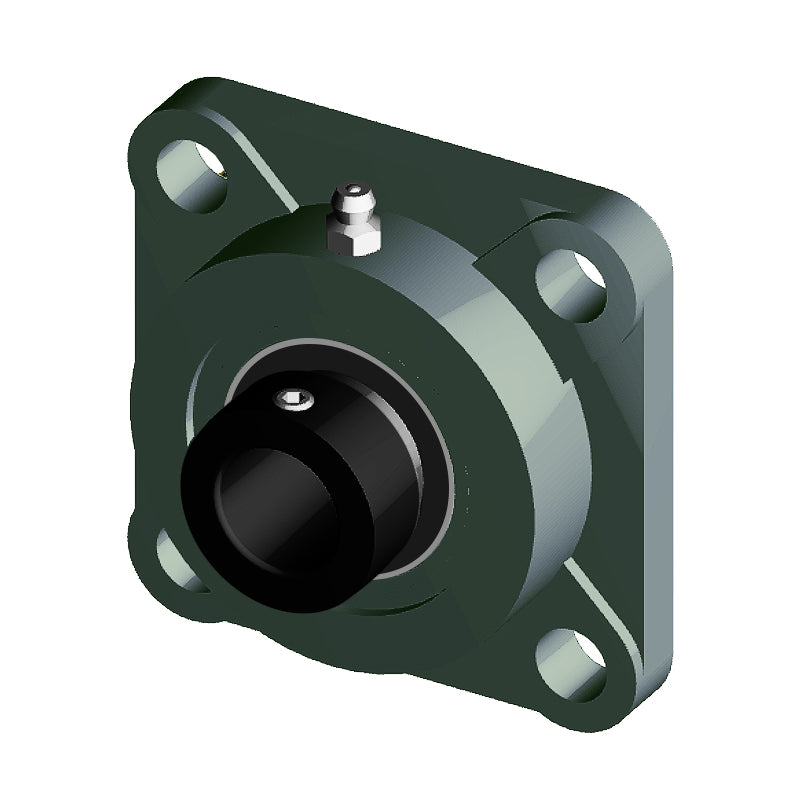

NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€51,16
ex VAT
Regular price
Sale price
€51,16
ex VAT
In stock
Price Break
10+
€45,53
19+
€42,97
29+
€42,46
39+
€41,95
49+
€41,44
74+
€40,93
99+
€38,37
199+
€37,86
249+
€37,35
499+
€36,84
999+
€35,81
Couldn't load pickup availability
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| L | 130mm |
| J | 102mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| A<sub>0</sub> | 55.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 57mm |
| Fixing bolt | M14 |
| Mass | 1.9 kg |
