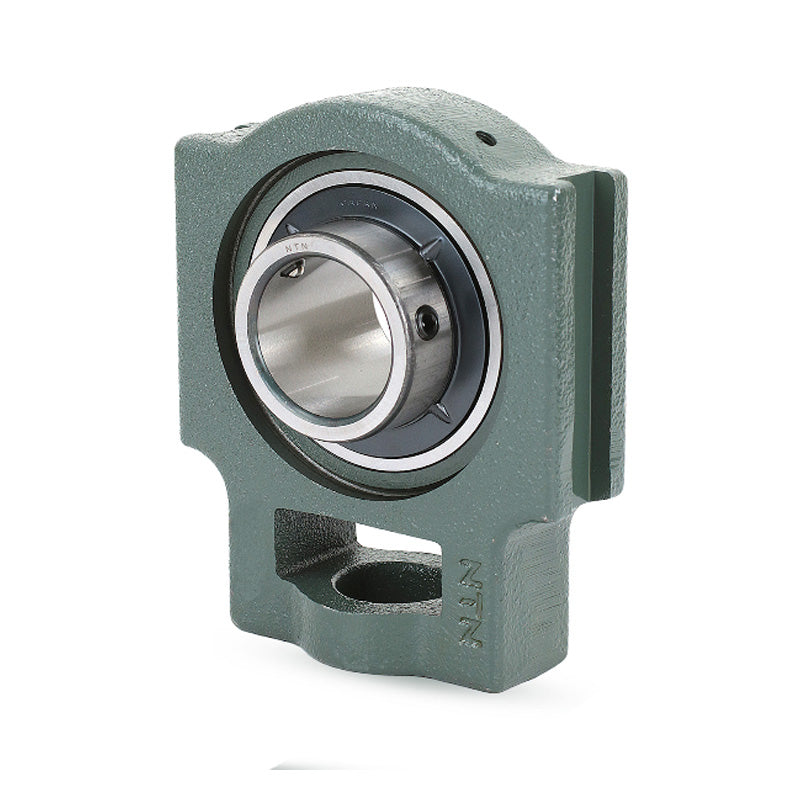

NTN M-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
NTN M-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€46,32
ex VAT
Regular price
Sale price
€46,32
ex VAT
In stock
Price Break
10+
€41,22
19+
€38,91
29+
€38,45
39+
€37,98
49+
€37,52
74+
€37,06
99+
€34,74
199+
€34,28
249+
€33,81
499+
€33,35
999+
€32,42
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 18mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 83mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 114mm |
| L | 144mm |
| A<sub>2</sub> | 33mm |
| A | 49mm |
| r | 56mm |
| L<sub>1</sub> | 88mm |
| B | 49.2mm |
| S | 19mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 24 kg |
