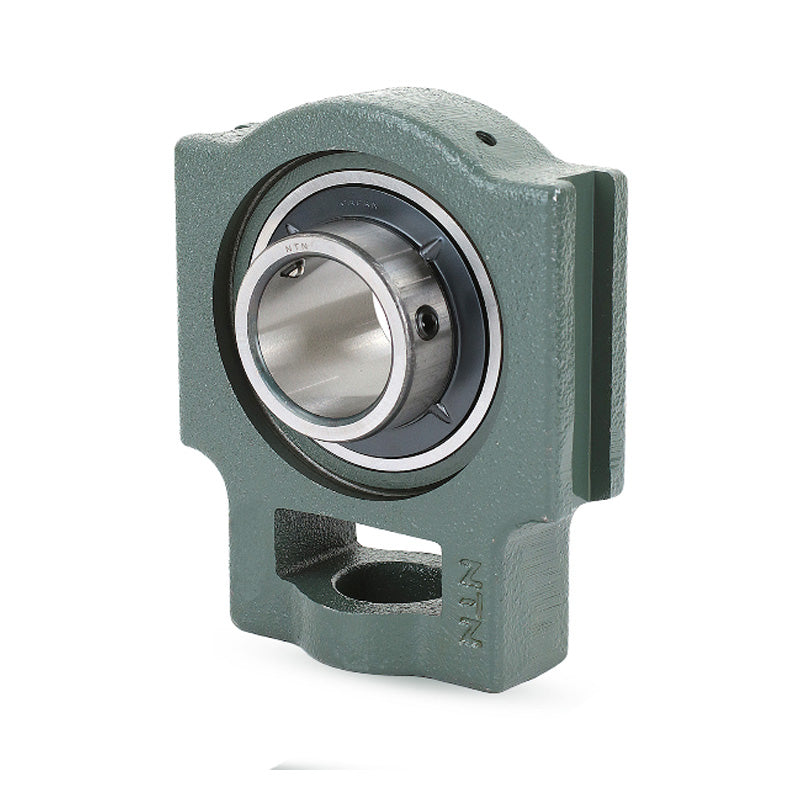

NTN M-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit - Allow 2-3 Days
NTN M-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€46,65
ex VAT
Regular price
Sale price
€46,65
ex VAT
In stock
Price Break
10+
€41,52
19+
€39,19
29+
€38,72
39+
€38,25
49+
€37,79
74+
€37,32
99+
€34,99
199+
€34,52
249+
€34,05
499+
€33,59
999+
€32,66
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 15mm |
| H<sub>2</sub> | 64mm |
| N<sub>2</sub> | 37mm |
| N | 22mm |
| L<sub>3</sub> | 64mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 89mm |
| H | 102mm |
| L | 129mm |
| A<sub>2</sub> | 30mm |
| A | 37mm |
| r | 51mm |
| L<sub>1</sub> | 78mm |
| B | 42.9mm |
| S | 17.5mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 1.6 kg |
