SKU: LM.13.UU.AJ.EU

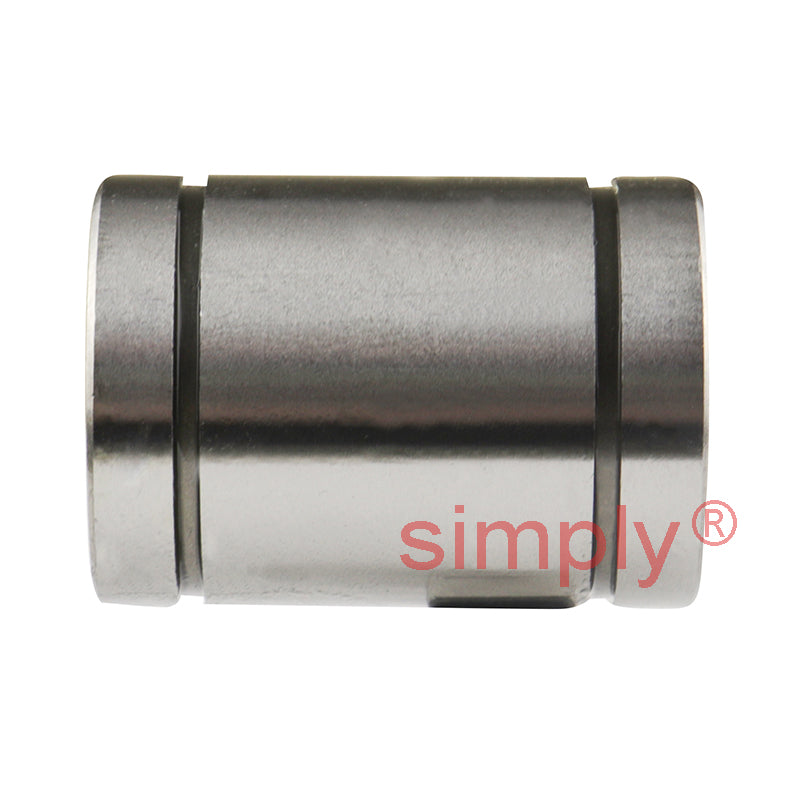

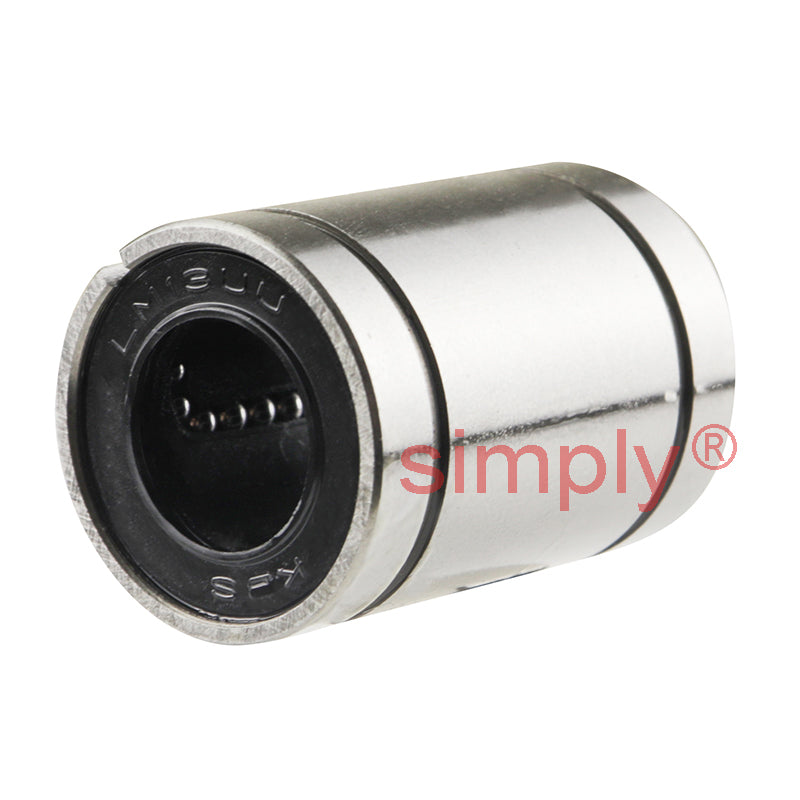

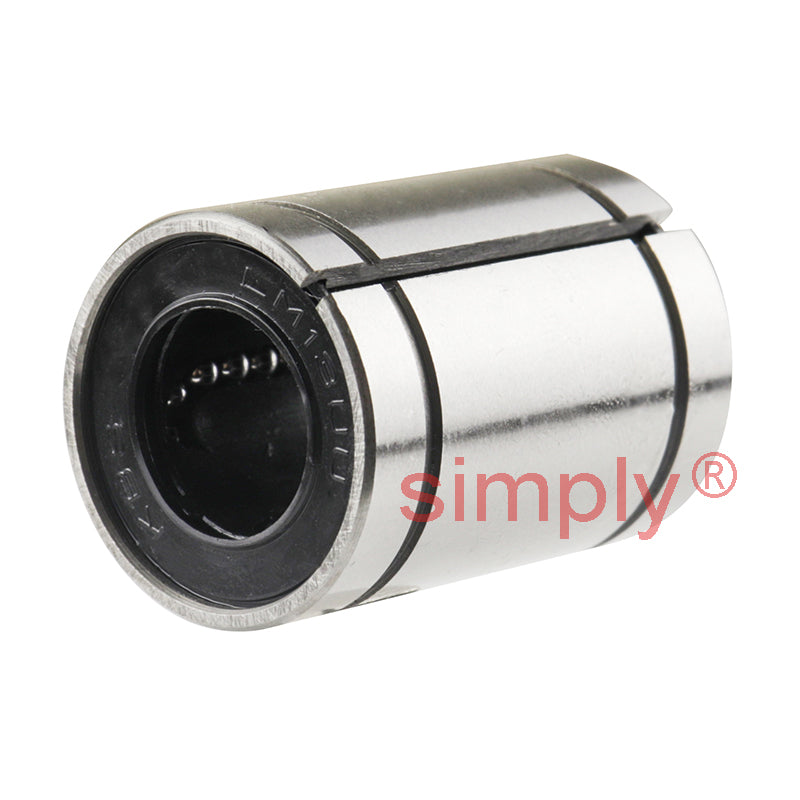

LM13UUAJ Adjustable Linear Ball Bushing with Rubber Seals 13x23x32mm
Equivalent to: SM13GUUAJ LBD13UUAJ LB13NTYDD N13VUUADJ L13ADJUU
In stock
Price Break
Share this product
Description
LM-AJ Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: SM13GUUAJ LBD13UUAJ LB13NTYDD N13VUUADJ L13ADJUU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 13mm
- Outside Diameter:
- 23mm
- Length:
- 32mm
Technical
| Inside Diameter dr | 13mm Tol + 0 to - 6µm |
|---|---|
| Outside Diameter D | 23mm Tol + 0 to - 12µm |
| Length L | 32mm Tol + 0 to - 200µm |
| W | 1.3mm |
| D1 | 22mm |
| h | 1.5mm |
| Eccentricity | 8µm |
| Dynamic load C | 30 kgf |
| Static load C<sub>o</sub> | 52 kgf |
| Weight | 43 g |
| B | 23mm Tol + 0 to - 200µm |
| Number of ball rows | 4 |
