SKU: LFTC25A-RHP

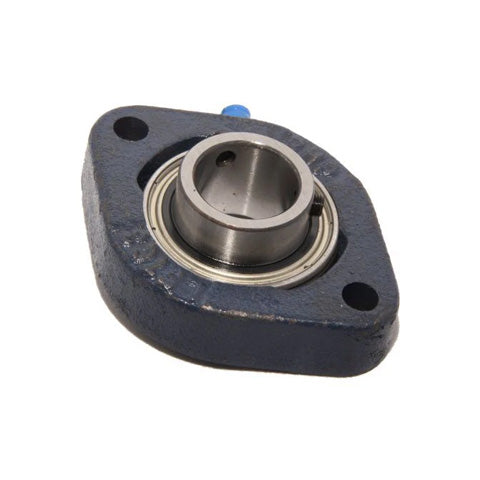

RHP LFTC25A Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
RHP LFTC25A Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
Regular price
€44,47
ex VAT
Regular price
Sale price
€44,47
ex VAT
In stock
Price Break
10+
€39,58
19+
€37,35
29+
€36,91
39+
€36,47
49+
€36,02
74+
€35,58
99+
€33,35
199+
€32,91
249+
€32,46
499+
€32,02
999+
€31,13
Couldn't load pickup availability
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- LFTC
- Bolt Hole Centres:
- 76mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 71mm |
| H | 96mm |
| J | 76mm |
| G | 8mm |
| A | 17.5mm |
| A1 | 29.24mm |
| B1 | 27.35mm |
| s1 | 7.56mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
