SKU: LAZY/390

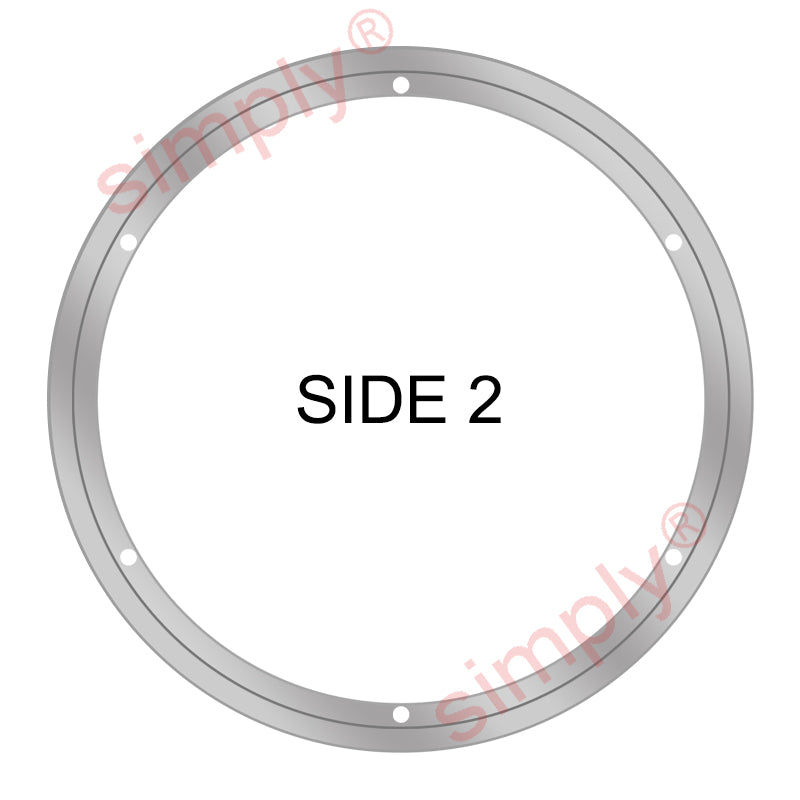

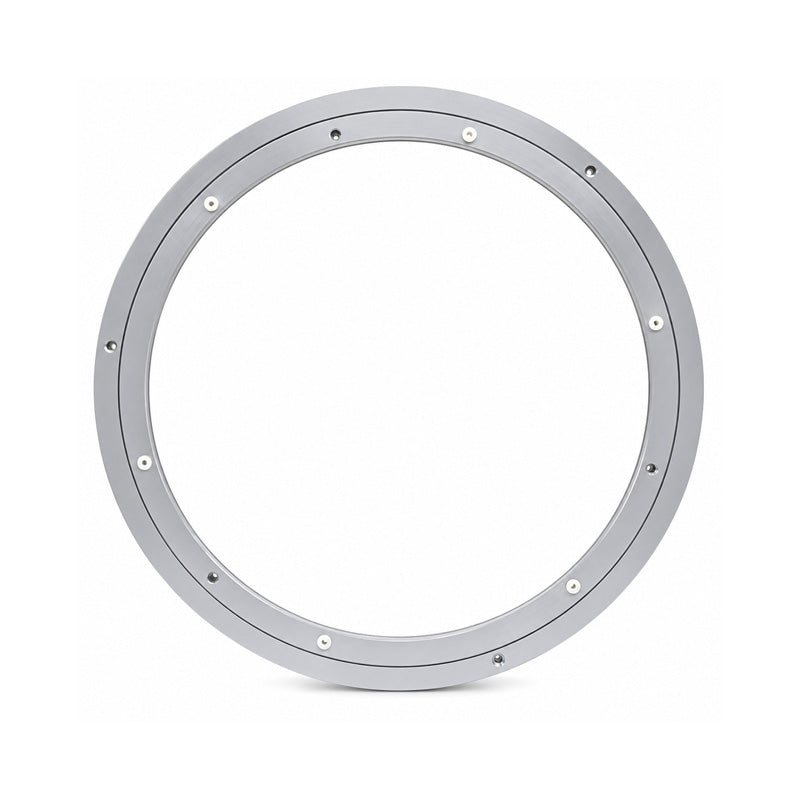

390mm Round Lazy Susan Rotating Aluminium Turntable Bearing
390mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
€19,46
ex VAT
Regular price
Sale price
€19,46
ex VAT
In stock
Price Break
10+
€14,82
19+
€13,99
29+
€13,82
39+
€13,65
49+
€13,49
74+
€13,32
99+
€12,49
199+
€12,32
249+
€12,15
499+
€11,99
999+
€11,66
Share this product
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 250 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 338mm = 13.31 inch
- Outside Diameter:
- 390mm = 15.35 inch
- Thickness:
- 8.5mm = 0.33 inch
Technical
Technical
| Nominal Inside Diameter | 338mm = 13.31 inch |
|---|---|
| Nominal Outside Diameter | 390mm = 15.35 inch |
| W | 8.5mm = 0.33 inch |
| W1 | 12.5mm = 0.49 inch |
| D1 | 13mm = 0.51 inch |
| D2 | 13mm = 0.51 inch |
| Bolt Hole Diameter | 5mm = 0.19 inch |
| Bolt Circle Diameter 1 | 344.5mm = 13.56 inch |
| Bolt Circle Diameter 2 | 383.5mm = 15.1 inch |
| Max Load Weight | 250 lbs |
| Weight | 0.7178kg |
