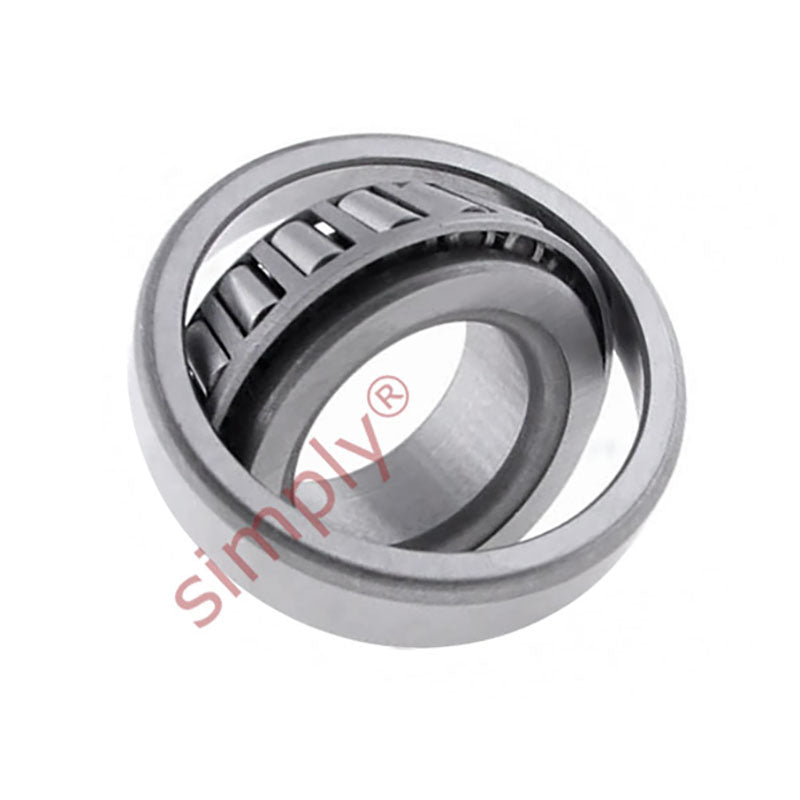

• SKF L327249/210 Imperial Taper Roller Bearing 5.25x6.9688x1 inches
1 1

SKU: L327249/210-SKF

SKF L327249/210 Imperial Taper Roller Bearing 5.25x6.9688x1 inches

SKF L327249/210 Imperial Taper Roller Bearing 5.25x6.9688x1 inches
€682,28 ex VAT
€682,28 ex VAT
Sale Sold out

In stock

Price Break
10+ €519,62
19+ €490,43
29+ €484,59
39+ €478,75
49+ €472,92
74+ €467,08
99+ €437,88
199+ €432,05
249+ €426,21
499+ €420,37
999+ €408,69
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
133.35mm = 5.25 (5-1/4) inch
Outside Diameter:
177.01mm = 6.969 (6-31/32) inch
Width:
25.4mm = 1 inch
Seals / Shields:
None
Technical
d 133.35mm
D 177.008mm
T 25.4mm
Dynamic load 134 kN
Static load 280 kN
Fatigue load limit Pu 28 kN
Reference speed 2400 rpm
Limiting speed 3600 rpm
Weight 1.8 kg
d1 155mm
B 26.195mm
C 20.638mm
r1r2 min 1.5mm
r3r4 min 1.5mm
a 29mm
da max 145mm
db min 141mm
Da min 165mm
Da max 188mm
Db min 170mm
Ca min 5mm
Cb min 4.5mm
ra max 1.5mm
rb max 1.5mm
Calculation factor e 0.33
Calculation factor Y 1.8
Calculation factor Y0 1
