SKU: KR40PPA-MB-IKO

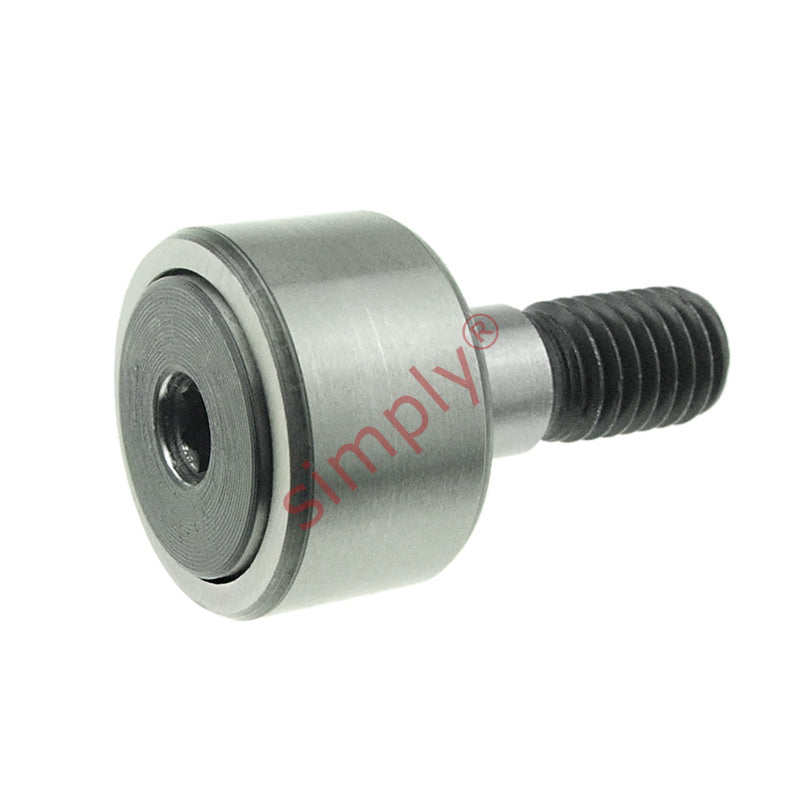

IKO KR40PPA Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread

Name: IKO KR40PPA Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
Brand: IKO
SKU: KR40PPA-MB-IKO
Price: 51.80 EUR
Availability: InStock

€51,80 ex VAT

Sale Sold out

In stock

Price Break

10+ €43,89

19+ €42,11

29+ €41,23

39+ €39,90

49+ €39,01

74+ €36,79

99+ €31,03

199+ €0,00

249+ €0,00

499+ €0,00

999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

Brand / Quality:: IKO - High Quality
Outside Diameter:: 40mm
Width:: 20mm
Pitch:: M18x1.5

Technical

D	40mm
C	20mm
d(Stud Diameter)	18mm
B	58mm
B1	36.5mm
B2	8mm
C1	0.8mm
d1	31.5mm
G	M18x1.5
G1	19mm
M1	3mm
r min	1mm
SW	8mm
Dynamic load	10500 N
Static load	14600 N
Fatigue load limit Pu	1730 N
Radial dynamic load	12500 N
Radial static load	18000 N
Speed rating	2900 rpm
Weight	250 g
