SKU: KR40B-MB-IKO
IKO KR40B Crowned Cam Follower 40x20x18 M18x1.5 Thread
IKO KR40B Crowned Cam Follower 40x20x18 M18x1.5 Thread
Regular price
€41,44
ex VAT
Regular price
Sale price
€41,44
ex VAT
In stock
Price Break
10+
€35,11
19+
€33,69
29+
€32,98
39+
€31,91
49+
€31,20
74+
€29,43
99+
€24,82
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
KR-B Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 40mm
- Width:
- 20mm
- Pitch:
- M18x1.5

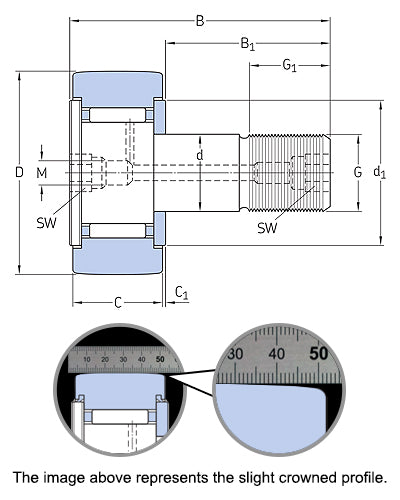

Technical
Technical
| D | 40mm |
|---|---|
| C | 20mm |
| d(Stud Diameter) | 18mm |
| B | 58mm |
| B1 | 36.5mm |
| B2 | 8mm |
| C1 | 0.8mm |
| d1 | 31.5mm |
| G | M18x1.5 |
| G1 | 19mm |
| M1 | 3mm |
| r min | 1mm |
| SW | 8mm |
| Dynamic load | 10500 N |
| Static load | 14600 N |
| Fatigue load limit Pu | 1730 N |
| Radial dynamic load | 12500 N |
| Radial static load | 18000 N |
| Speed rating | 2900 rpm |
| Weight | 250 g |
