SKU: KR32PP-EU

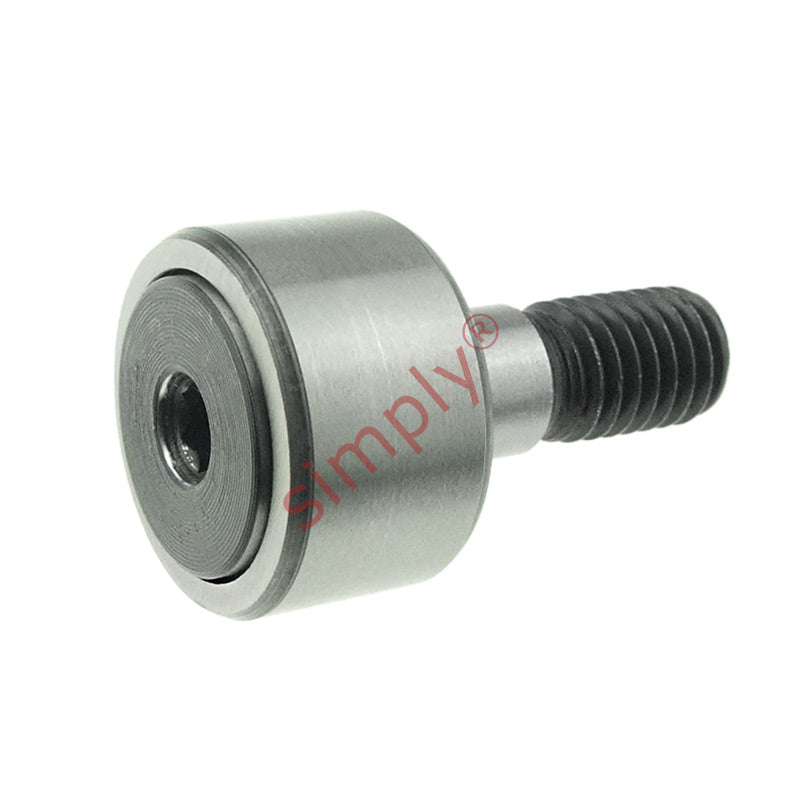

Budget KR32PP Contact Sealed Crowned Cam Follower 32x14x12 M12x1.5 Thread
Budget KR32PP Contact Sealed Crowned Cam Follower 32x14x12 M12x1.5 Thread
Regular price
€30,03
ex VAT
Regular price
Sale price
€30,03
ex VAT
In stock
Price Break
10+
€22,87
19+
€21,59
29+
€21,33
39+
€21,07
49+
€20,81
74+
€20,56
99+
€19,27
199+
€19,02
249+
€18,76
499+
€18,50
999+
€17,99
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 32mm
- Width:
- 14mm
- Pitch:
- M12x1.5
Technical
Technical
| D | 32mm |
|---|---|
| C | 14mm |
| d (Stud Diameter) | 12mm |
| B | 40mm |
| B1 | 25mm |
| B2 | 6mm |
| C1 | 0.6mm |
| d1 | 23mm |
| G | M12x1.5 |
| G1 | 13mm |
| M | 6mm |
| M1 | 3mm |
| r min | 0.6mm |
| Dynamic load | 6710 N |
| Static load | 8500 N |
| Fatigue load limit Pu | 950 N |
| Radial dynamic load | 10600 N |
| Radial static load | 15000 N |
| Speed rating | 5500 rpm |
| Weight | 98 g |
