SKU: KR19PPSK-MB

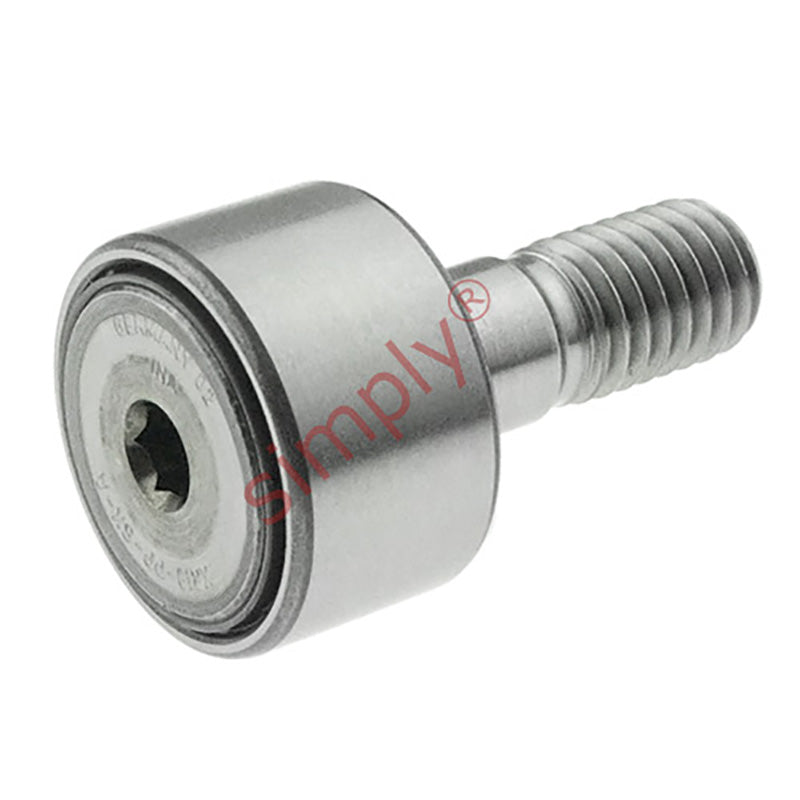

Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Regular price
€40,74
ex VAT
Regular price
Sale price
€40,74
ex VAT
Equivalent to: KR19SKPPA KR19SKPP
In stock
Price Break
10+
€36,26
19+
€34,22
29+
€33,81
39+
€33,41
49+
€33,00
74+
€32,59
99+
€30,56
199+
€30,15
249+
€29,74
499+
€29,33
999+
€28,52
Couldn't load pickup availability
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Equivalent: KR19SKPPA KR19SKPP
- Brand / Quality:
- Major Brand - High Quality
- Thread Pitch:
- M8
- Outside Diameter:
- 19mm
- Width:
- 11mm
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8mm |
| G1 | 10mm |
| r min | 0.15mm |
| SW | 4mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
