SKU: KR16-MB

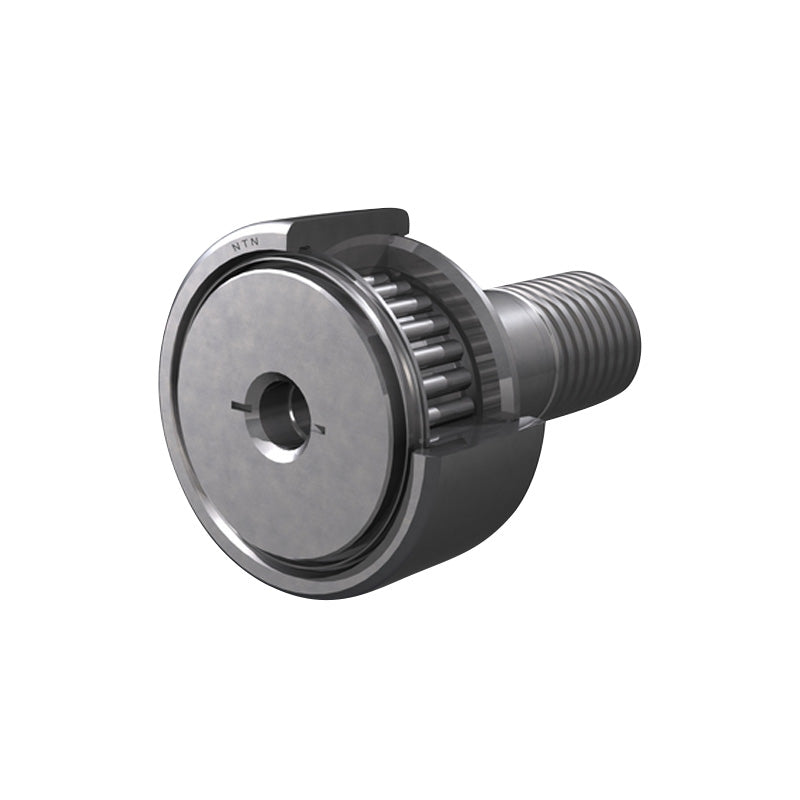

Major Brand KR16 Crowned Cam Follower 16x11x6 M6 Thread
Major Brand KR16 Crowned Cam Follower 16x11x6 M6 Thread
Regular price
€39,04
ex VAT
Regular price
Sale price
€39,04
ex VAT
In stock
Price Break
10+
€29,74
19+
€28,07
29+
€27,73
39+
€27,40
49+
€27,07
74+
€26,73
99+
€25,06
199+
€24,73
249+
€24,39
499+
€24,06
999+
€23,39
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 16mm
- Width:
- 11mm
- Pitch:
- M6
Technical
Technical
| D | 16mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 6mm |
| B | 28mm |
| B1 | 16mm |
| C1 | 0.6mm |
| d1 | 12.5mm |
| G | M6mm |
| G1 | 8mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3140 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Radial dynamic load | 2900 N |
| Radial static load | 4150 N |
| Speed rating | 14000 rpm |
| Weight | 19 g |
