SKU: KMTA32-SKF

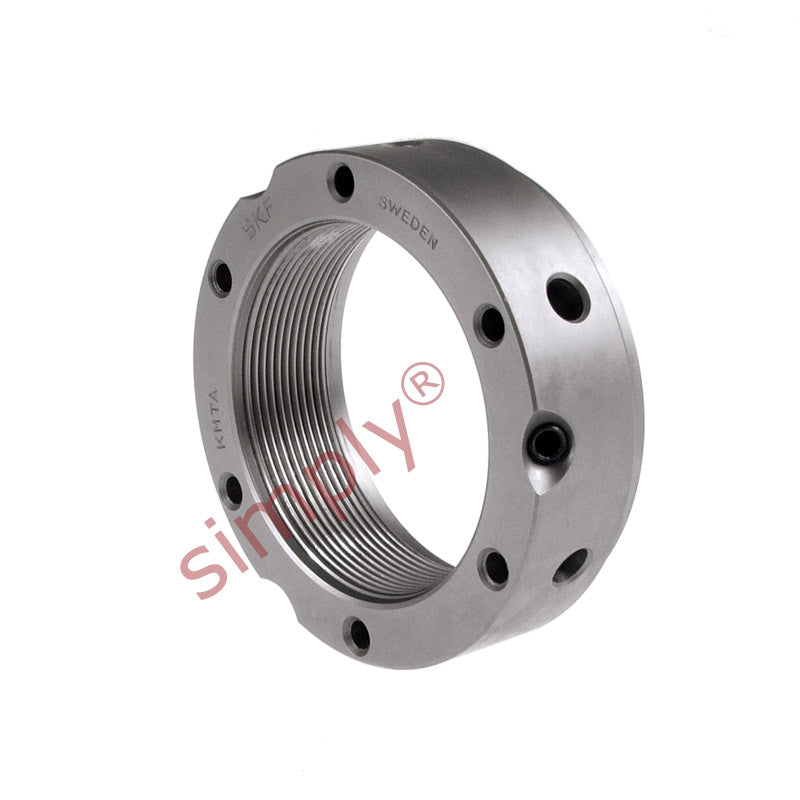

SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm
SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm
Regular price
€629,69
ex VAT
Regular price
Sale price
€629,69
ex VAT
In stock
Price Break
10+
€560,42
19+
€528,94
29+
€522,64
39+
€516,35
49+
€510,05
74+
€503,75
99+
€472,27
199+
€465,97
249+
€459,67
499+
€453,38
999+
€440,78
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M160x3
Technical
Technical
| G | M160x3 |
|---|---|
| d2 | 205mm |
| d3 | 190mm |
| d4 | 162mm |
| B | 32mm |
| J1 | 185mm |
| J2 | 17mm |
| N1 | 8.4mm |
| N2 | 10mm |
| Axial load capacity | 1100 kN |
| Loosening torque | 1600 Nm |
| Weight | 3.15 kg |
| Spanner | B205-220 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA32 |
