SKU: KMTA13-SKF

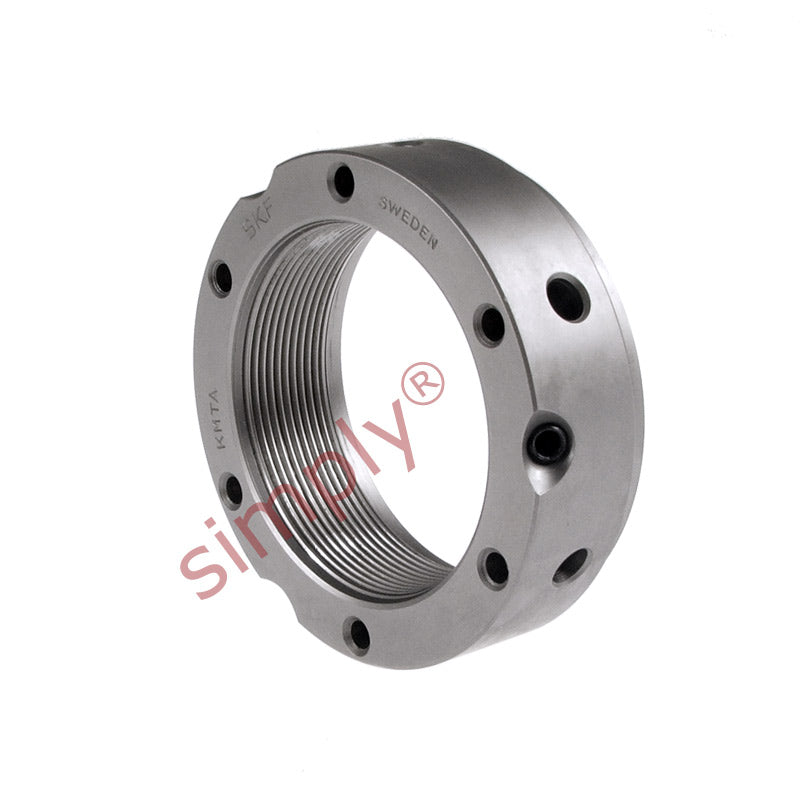

SKF KMTA13 Precision Locking Nut with Locking Pins M65x1.5mm
SKF KMTA13 Precision Locking Nut with Locking Pins M65x1.5mm
Regular price
€110,16
ex VAT
Regular price
Sale price
€110,16
ex VAT
Low stock
Price Break
10+
€98,04
19+
€92,53
29+
€91,43
39+
€90,33
49+
€89,23
74+
€88,13
99+
€82,62
199+
€81,52
249+
€80,42
499+
€79,32
999+
€77,11
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M65x1.5
Technical
Technical
| G | M65x1.5 |
|---|---|
| d2 | 88mm |
| d3 | 80mm |
| d4 | 68mm |
| B | 25mm |
| J1 | 78.5mm |
| J2 | 13mm |
| N1 | 5.3mm |
| N2 | 6mm |
| Axial load capacity | 460 kN |
| Loosening torque | 170 Nm |
| Weight | 0.52 kg |
| Spanner | B80-90 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA13 |
