• SKF KMT7 Precision Lock Nut with Locking Pins M35x1.5mm
  • SKF KMT7 Precision Lock Nut with Locking Pins M35x1.5mm
  • SKF KMT7 Precision Lock Nut with Locking Pins M35x1.5mm
1 3

SKU: KMT7-SKF

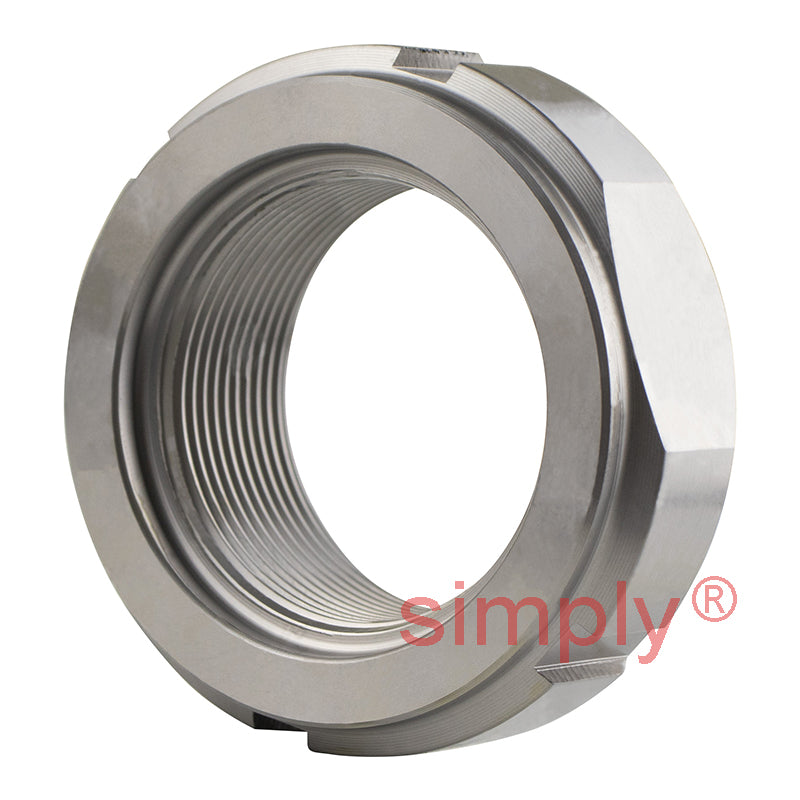

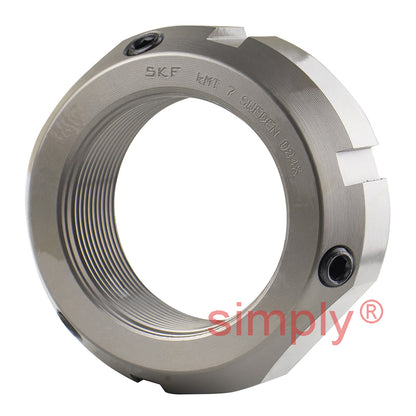

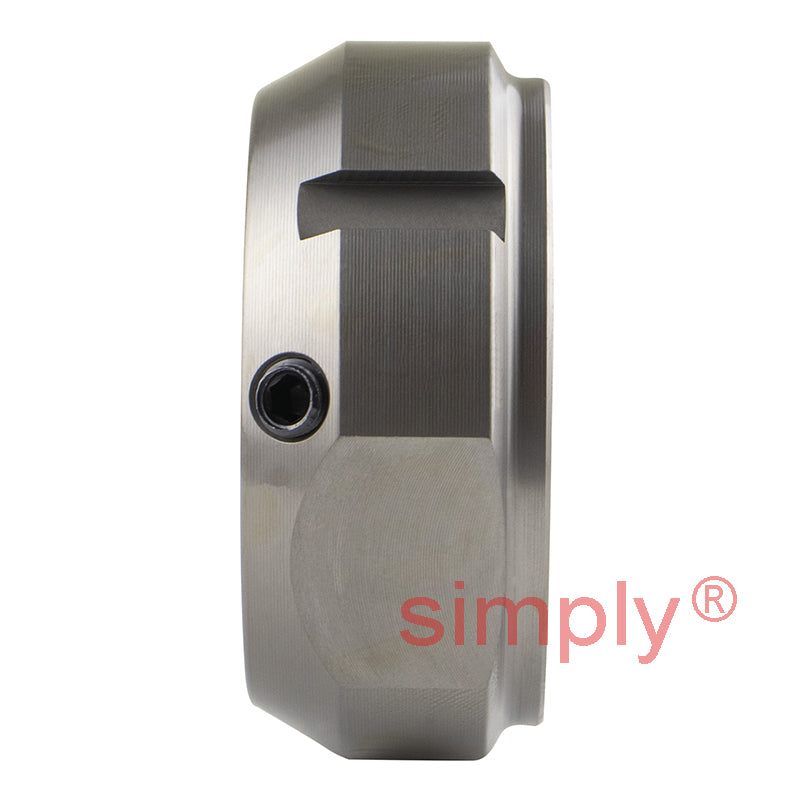

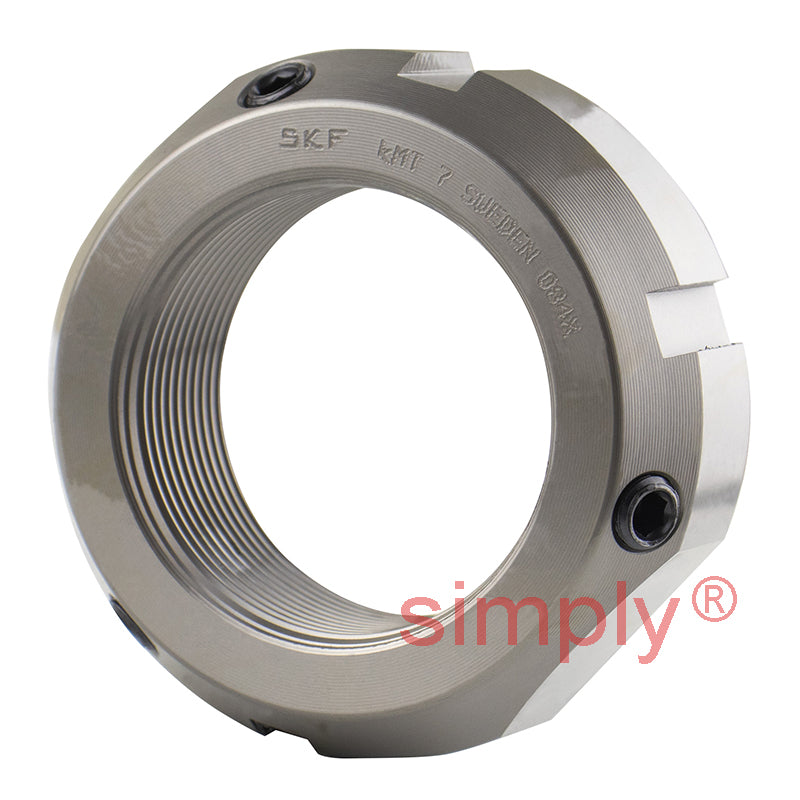

SKF KMT7 Precision Lock Nut with Locking Pins M35x1.5mm

SKF KMT7 Precision Lock Nut with Locking Pins M35x1.5mm
€78,14 ex VAT
€78,14 ex VAT
Sale Sold out

In stock

Price Break
10+ €59,52
19+ €56,17
29+ €55,50
39+ €54,84
49+ €54,17
74+ €53,50
99+ €50,15
199+ €49,49
249+ €48,82
499+ €48,15
999+ €46,81
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M35x1.5
Technical
d1 46mm
d2 54mm
d3 49mm
d4 38mm
B 22mm
b 5mm
h 2mm
M 50mm
Axial load capacity 190 kN
Loosening torque 65 Nm
Weight 0.19 kg
G M35x1.5
Spanner HN7
Grub screw M6
Screw torque 8 Nm
