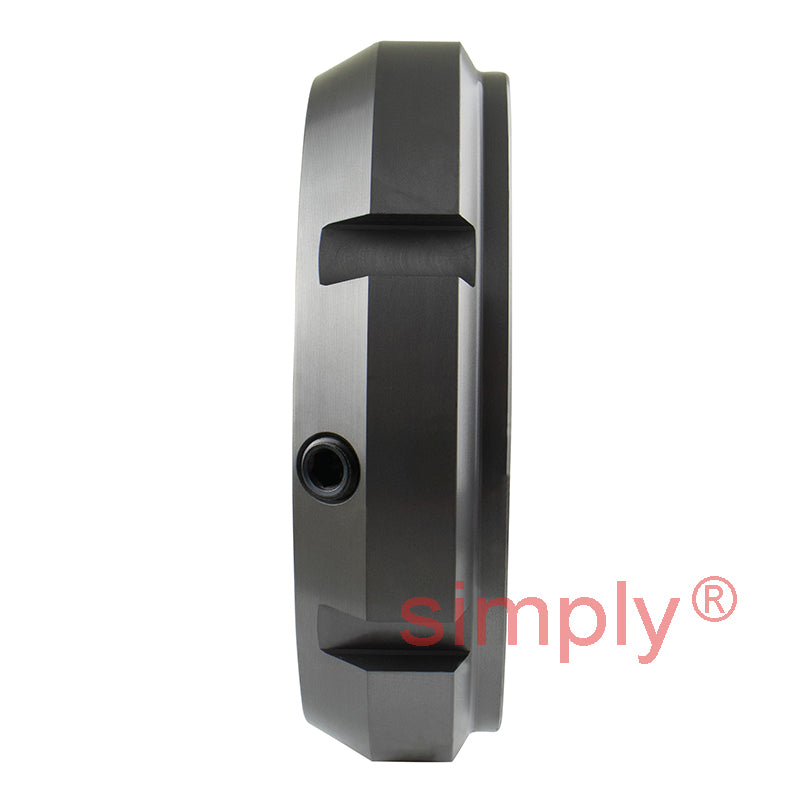

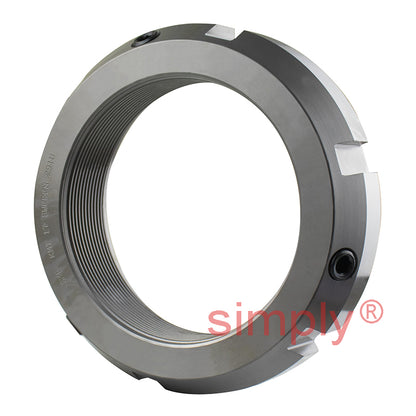

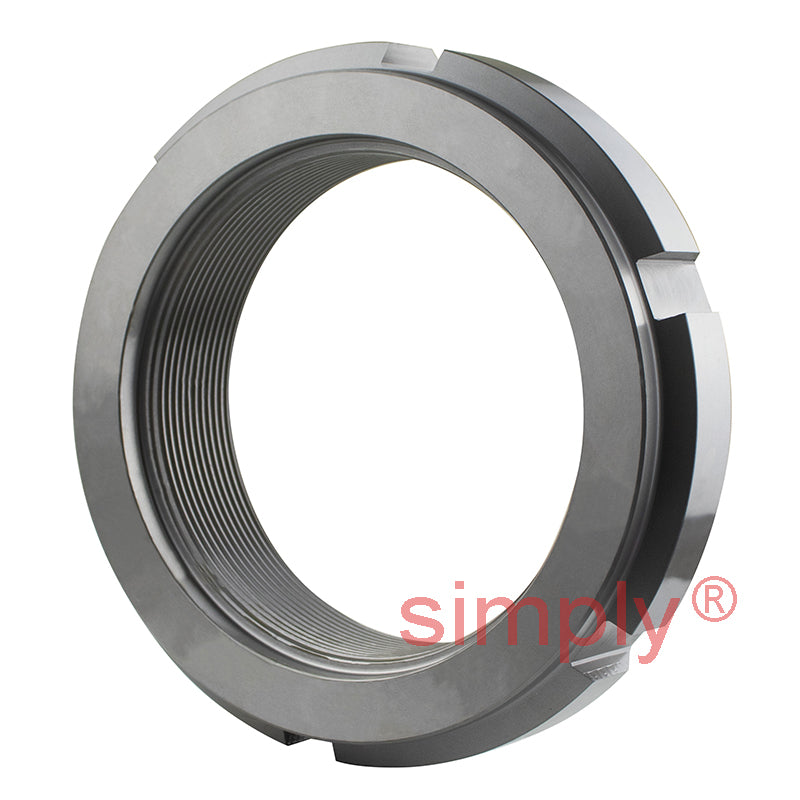

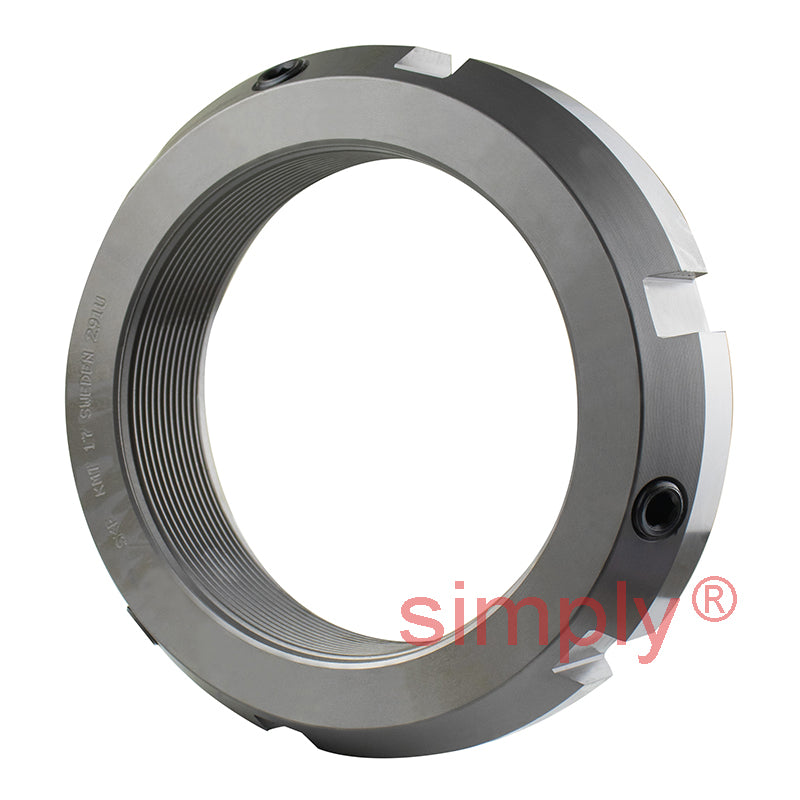

SKF KMT17 Precision Lock Nut with Locking Pins M85x2mm
SKF KMT17 Precision Lock Nut with Locking Pins M85x2mm
Regular price
€213,31
ex VAT
Regular price
Sale price
€213,31
ex VAT
In stock
Price Break
10+
€162,46
19+
€153,33
29+
€151,51
39+
€149,68
49+
€147,86
74+
€146,03
99+
€136,91
199+
€135,08
249+
€133,26
499+
€131,43
999+
€127,78
Share this product
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M85x2
Technical
Technical
| d1 | 107mm |
|---|---|
| d2 | 120mm |
| d3 | 110mm |
| d4 | 88mm |
| B | 32mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 650 kN |
| Loosening torque | 660 Nm |
| Weight | 1.15 kg |
| G | M85x2 |
| Spanner | HN17/18 |
| Grub screw | M10 |
| Screw torque | 35 Nm |
