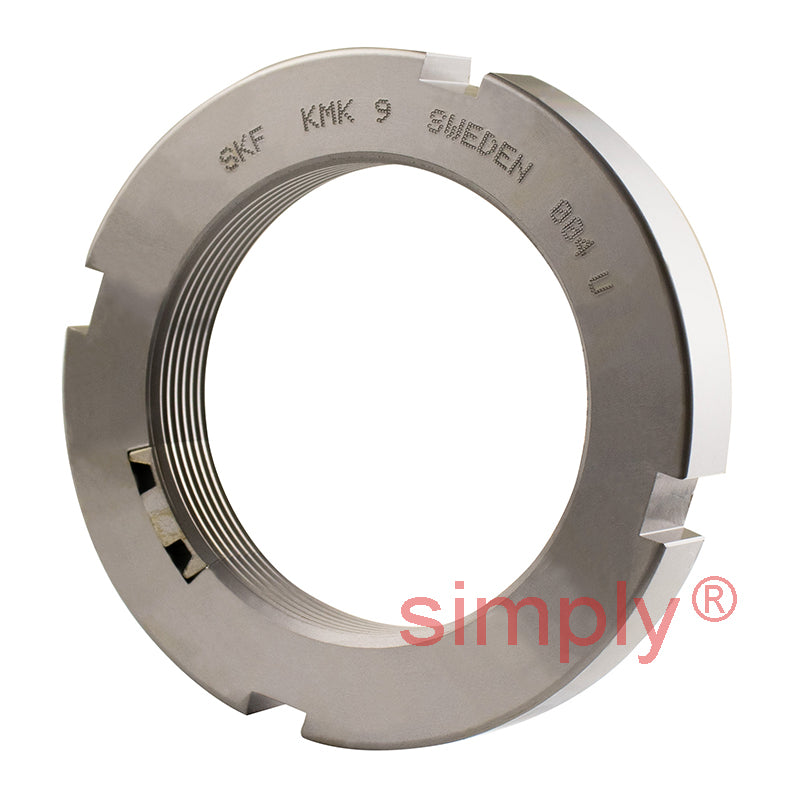

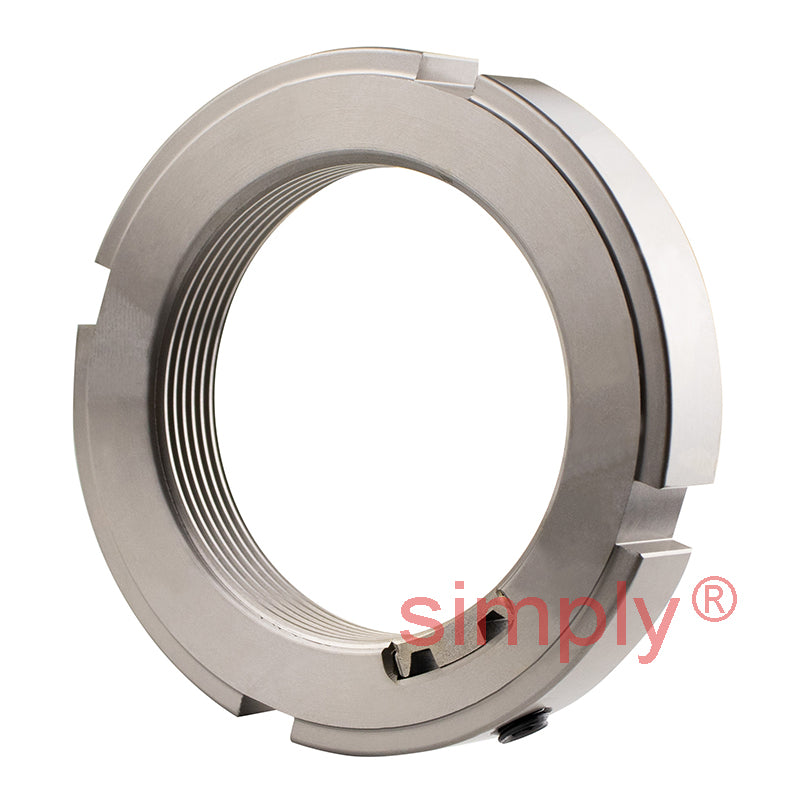

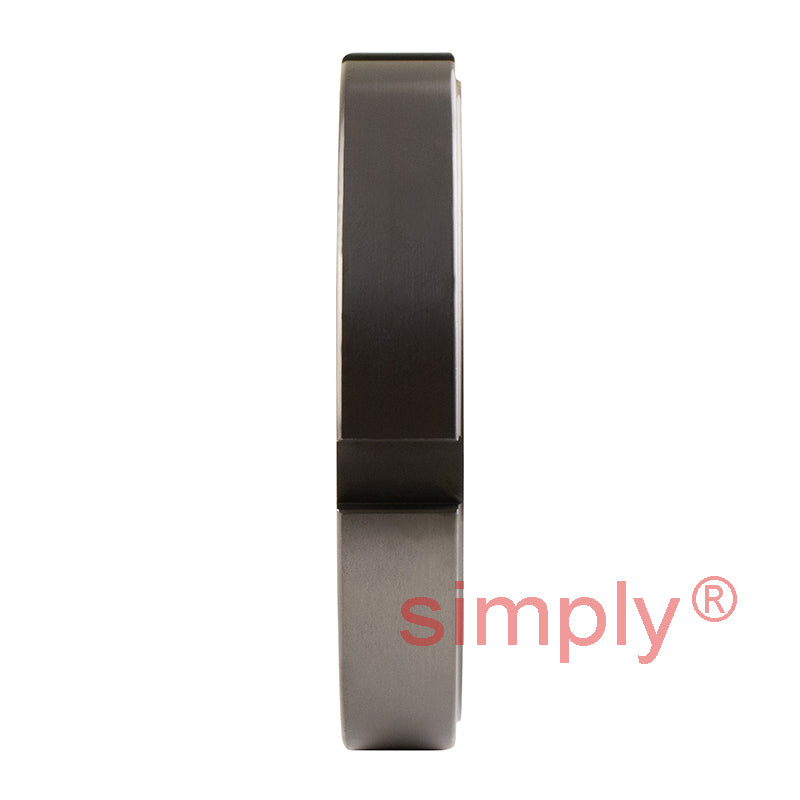

SKF KMK9 Lock Nut with Integral Locking Device M45x1.5mm
SKF KMK9 Lock Nut with Integral Locking Device M45x1.5mm
Regular price
€57,79
ex VAT
Regular price
Sale price
€57,79
ex VAT
In stock
Price Break
10+
€44,01
19+
€41,54
29+
€41,05
39+
€40,55
49+
€40,06
74+
€39,56
99+
€37,09
199+
€36,60
249+
€36,10
499+
€35,61
999+
€34,62
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M45x1.5
Technical
Technical
| d1 | 60mm |
|---|---|
| d3 | 65mm |
| B | 11mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 78 kN |
| Loosening torque | 76 Nm |
| Weight | 0.14 kg |
| G | M45x1.5 |
| Designation | KMK9 |
| Locking device | HN9 |
| Grub screw | M6 |
| Grub screw torque | 8 Nm |
