SKU: KMK7-SKF

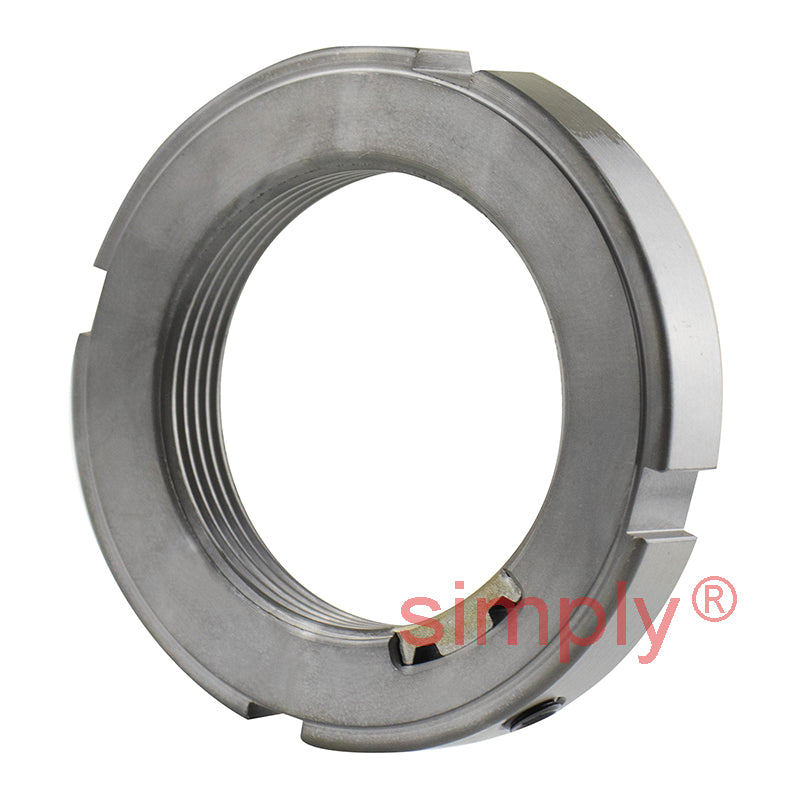

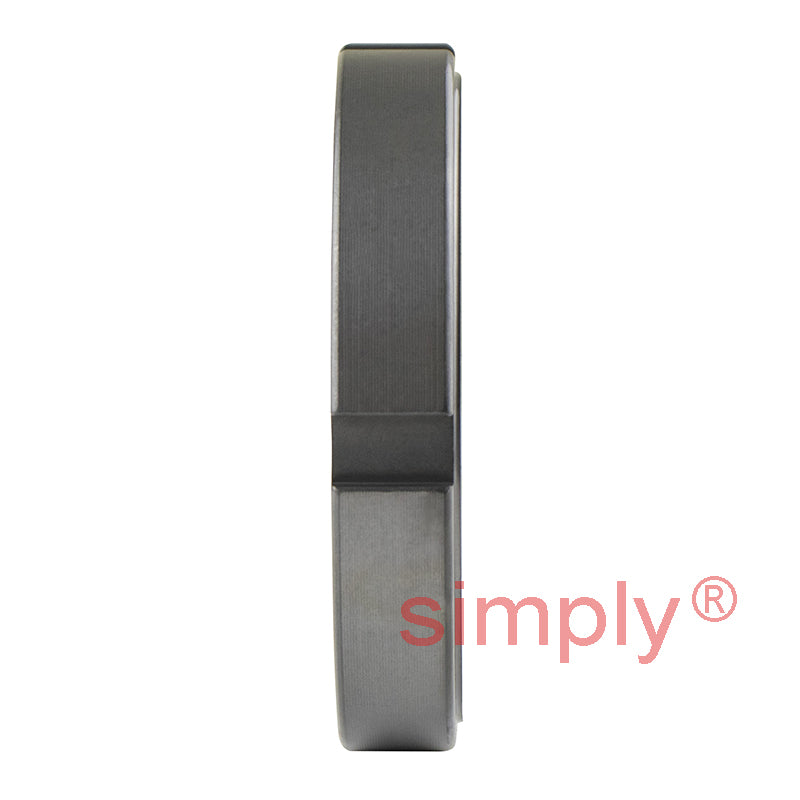

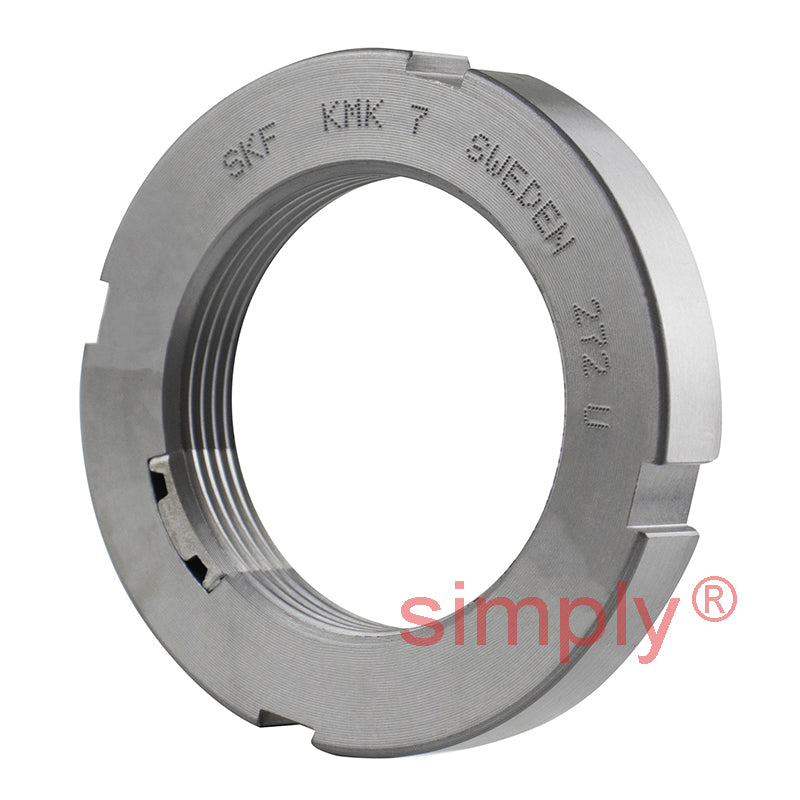

SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
Regular price
€50,48
ex VAT
Regular price
Sale price
€50,48
ex VAT
In stock
Price Break
10+
€38,45
19+
€36,29
29+
€35,86
39+
€35,42
49+
€34,99
74+
€34,56
99+
€32,40
199+
€31,97
249+
€31,54
499+
€31,10
999+
€30,24
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| d1 | 48mm |
|---|---|
| d3 | 52mm |
| B | 9mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 50 kN |
| Loosening torque | 40 Nm |
| Weight | 0.07 kg |
| G | M35x1.5 |
| Designation | KMK7 |
| Locking device | HN7 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
