SKU: KMK14-SKF

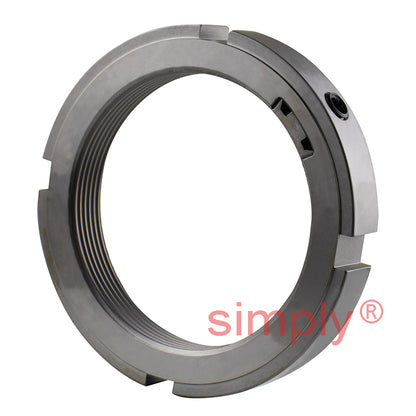

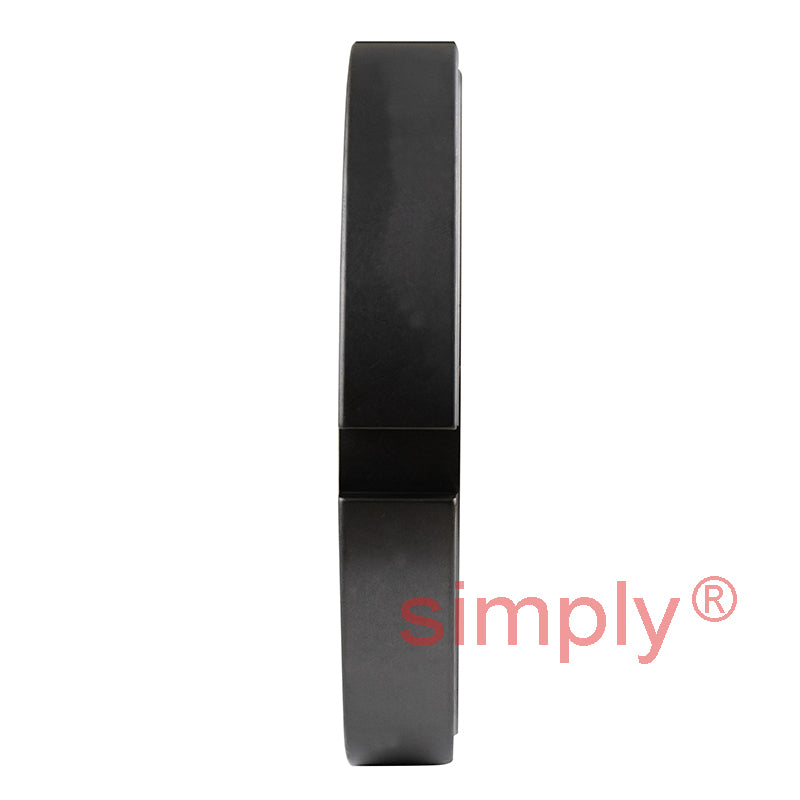

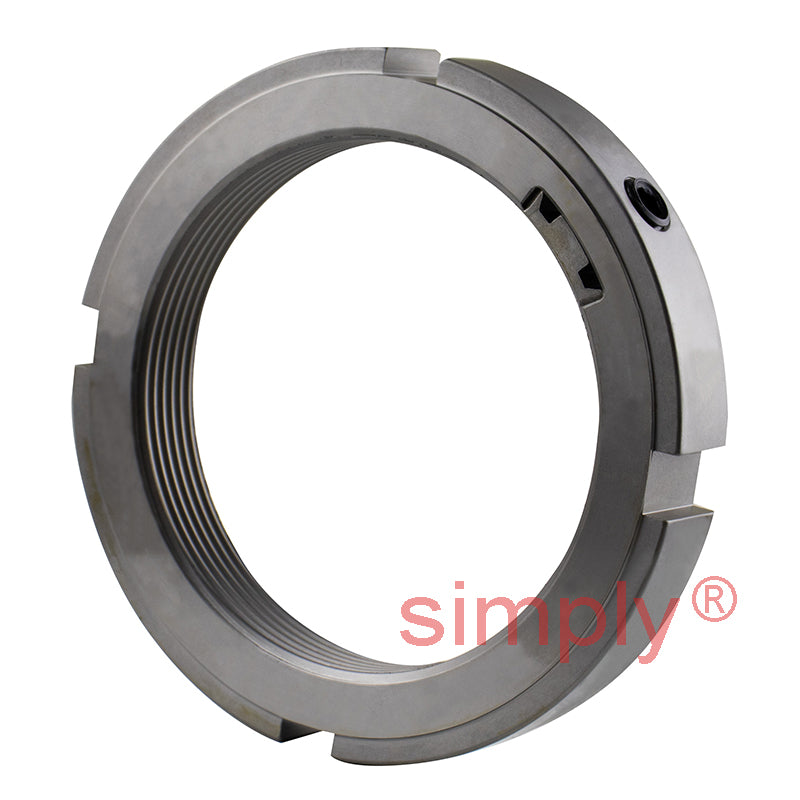

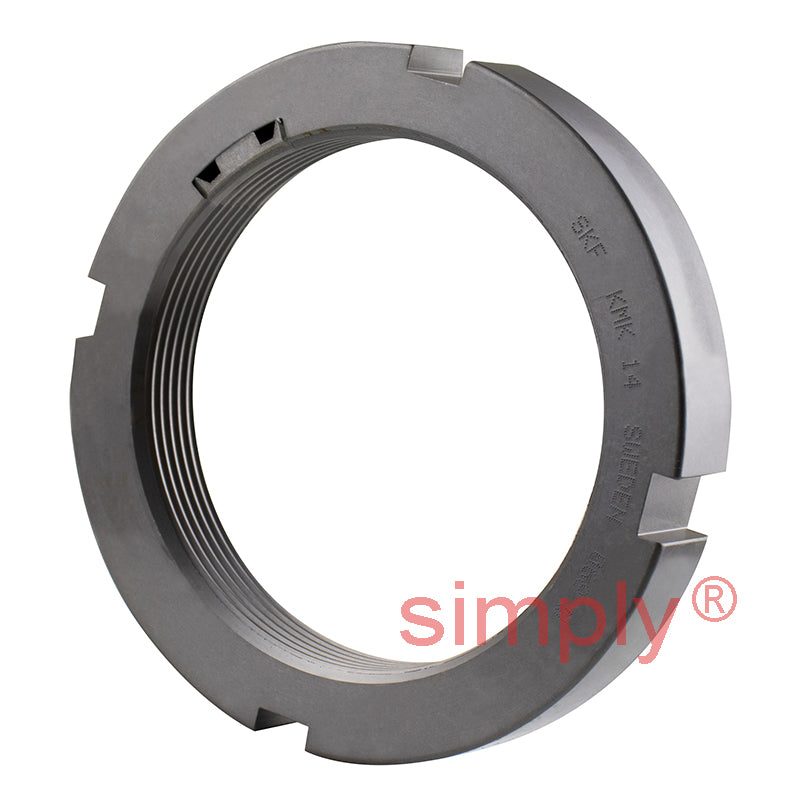

SKF KMK14 Lock Nut with Integral Locking Device M70x2mm
SKF KMK14 Lock Nut with Integral Locking Device M70x2mm
Regular price
€98,75
ex VAT
Regular price
Sale price
€98,75
ex VAT
In stock
Price Break
10+
€75,21
19+
€70,98
29+
€70,14
39+
€69,29
49+
€68,45
74+
€67,60
99+
€63,38
199+
€62,53
249+
€61,69
499+
€60,84
999+
€59,15
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M70x2
Technical
Technical
| d1 | 85mm |
|---|---|
| d3 | 92mm |
| B | 14mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 118 kN |
| Loosening torque | 219 Nm |
| Weight | 0.28 kg |
| G | M70x2 |
| Designation | KMK14 |
| Locking device | HN14 |
| Grub screw | M8 |
| Grub screw torque | 18 Nm |
