SKU: KMK10-SKF

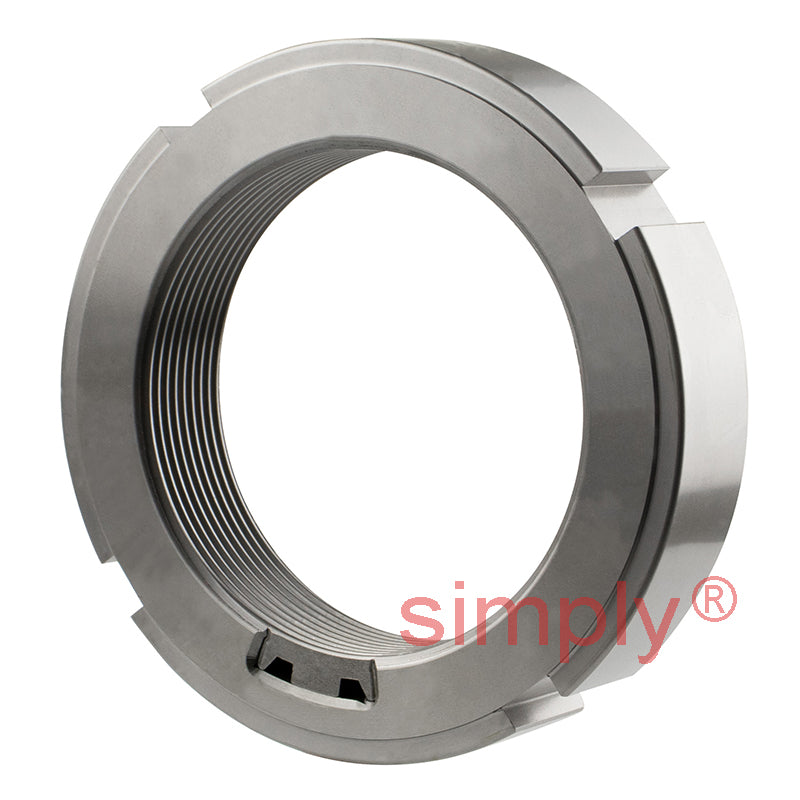

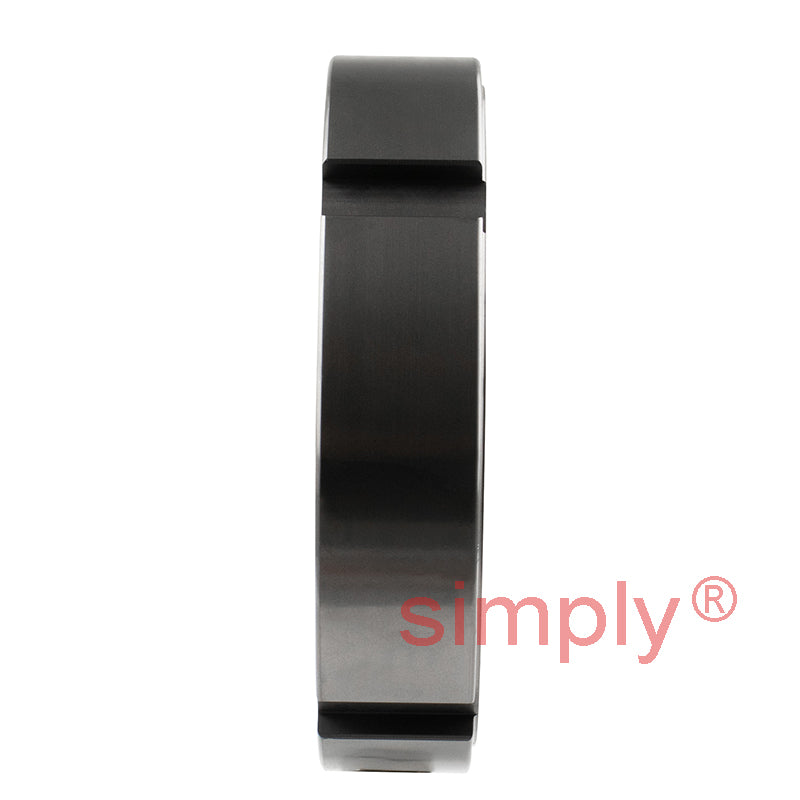

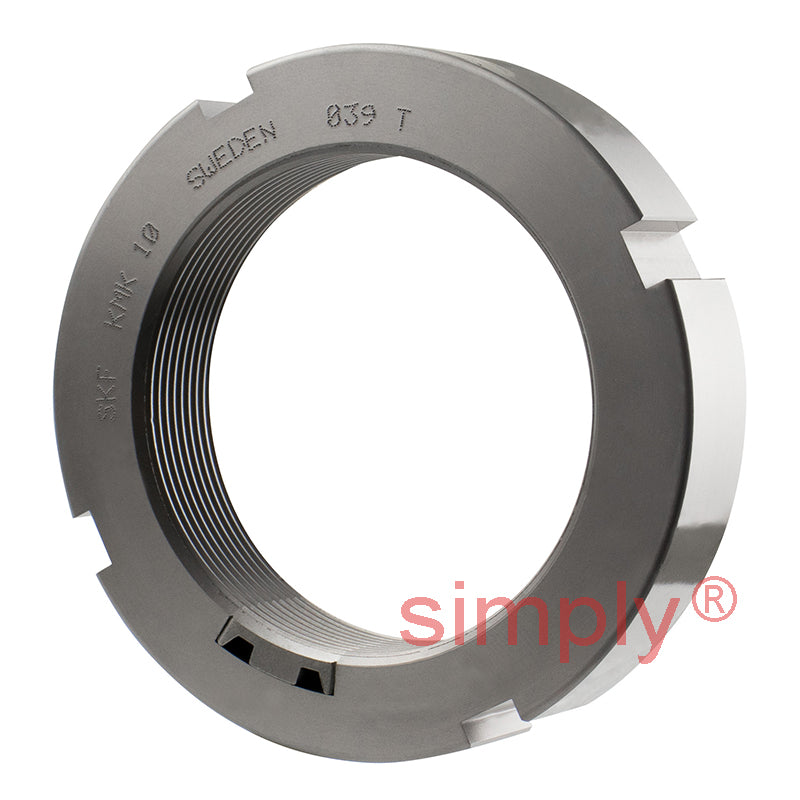

SKF KMK10 Lock Nut with Integral Locking Device M50x1.5mm
SKF KMK10 Lock Nut with Integral Locking Device M50x1.5mm
Regular price
€63,12
ex VAT
Regular price
Sale price
€63,12
ex VAT
In stock
Price Break
10+
€56,18
19+
€53,02
29+
€52,39
39+
€51,76
49+
€51,13
74+
€50,50
99+
€47,34
199+
€46,71
249+
€46,08
499+
€45,45
999+
€44,18
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M50x1.5
Technical
Technical
| d1 | 65mm |
|---|---|
| d3 | 70mm |
| B | 15mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 91.5 kN |
| Loosening torque | 84 Nm |
| Weight | 0.18 kg |
| G | M50x1.5 |
| Designation | KMK10 |
| Locking device | HN10 |
| Grub screw | M6 |
| Grub screw torque | 8 Nm |
