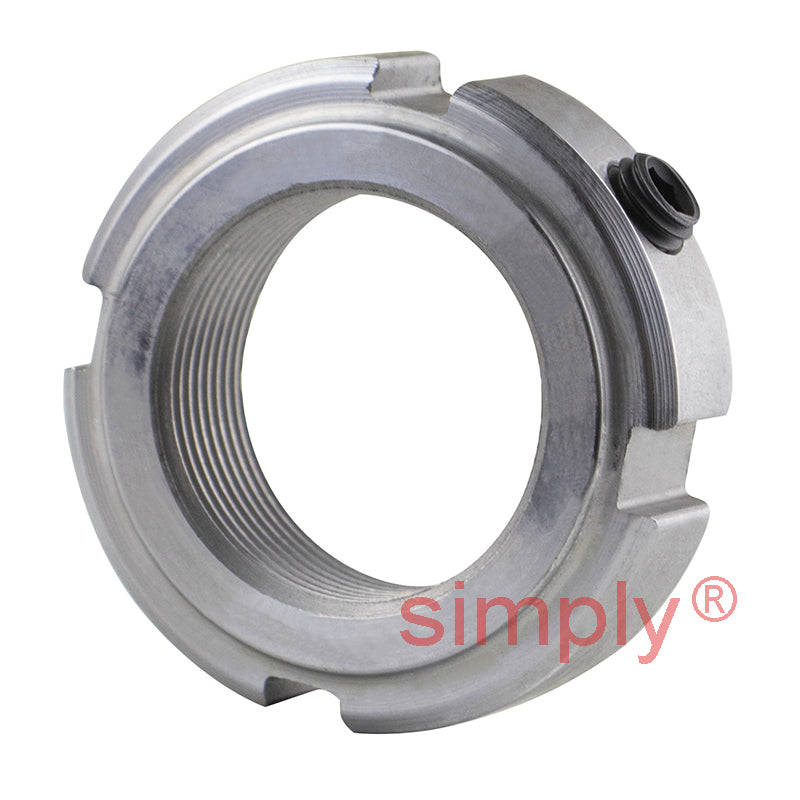

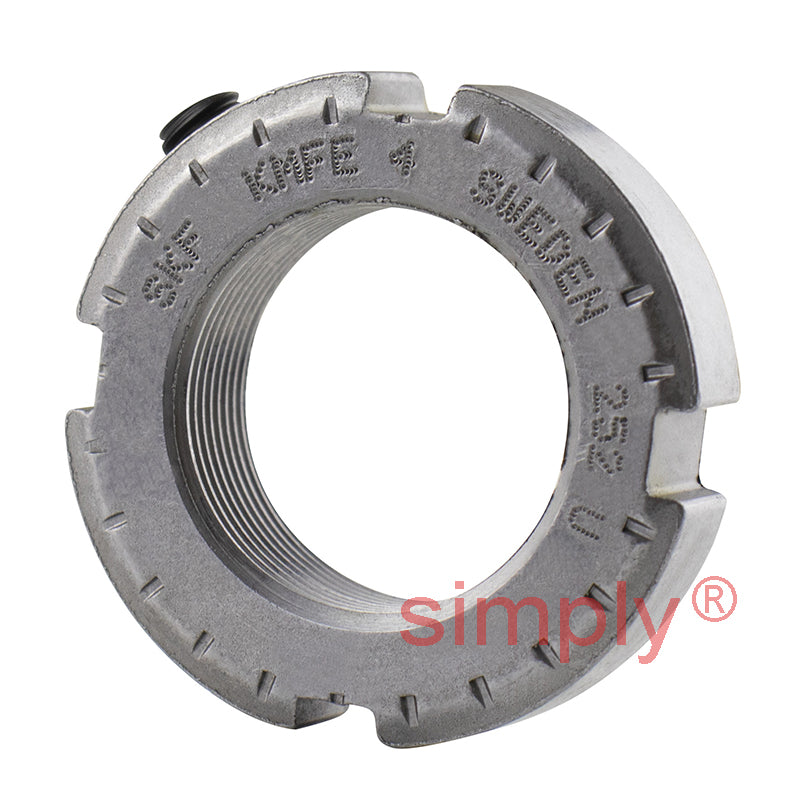

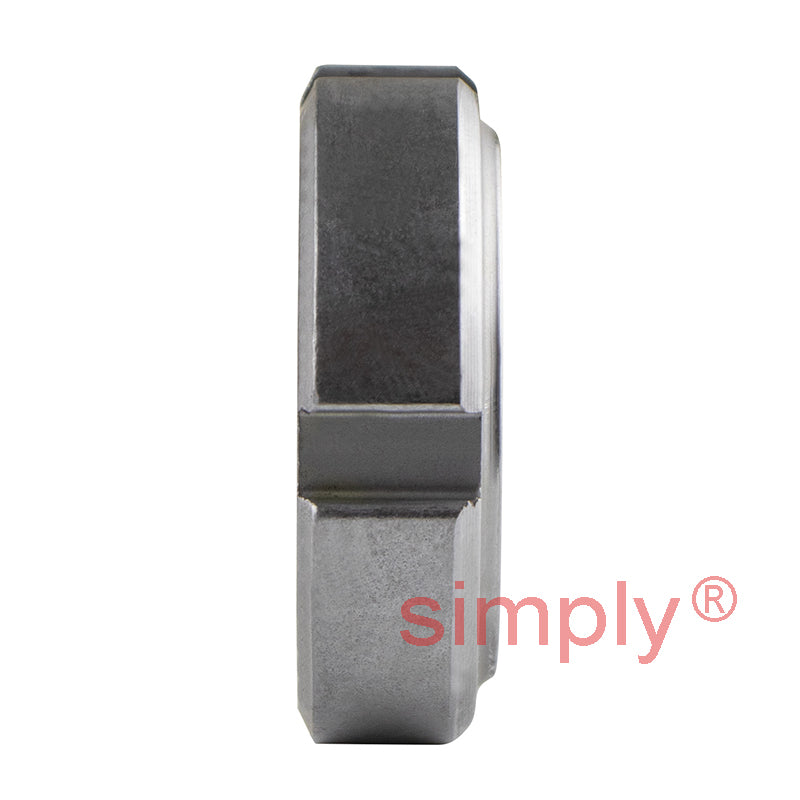

SKF KMFE4 Lock Nut with Locking Screw M20x1mm
SKF KMFE4 Lock Nut with Locking Screw M20x1mm
Regular price
€34,26
ex VAT
Regular price
Sale price
€34,26
ex VAT
In stock
Price Break
10+
€30,49
19+
€28,78
29+
€28,44
39+
€28,09
49+
€27,75
74+
€27,41
99+
€25,70
199+
€25,35
249+
€25,01
499+
€24,67
999+
€23,98
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M20x1
Technical
Technical
| d1 | 26mm |
|---|---|
| d3 | 32mm |
| B | 9.5mm |
| B1 | 8.5mm |
| b | 4mm |
| h | 2mm |
| Axial load capacity | 24 kN |
| Looseing torque | 28 Nm |
| Weight | 0.031 kg |
| G | M20x1 |
| Designation | KMFE4 |
| Spanner | HN4 |
| Grub | M5 |
| Screw tightening torque | 4 Nm |
