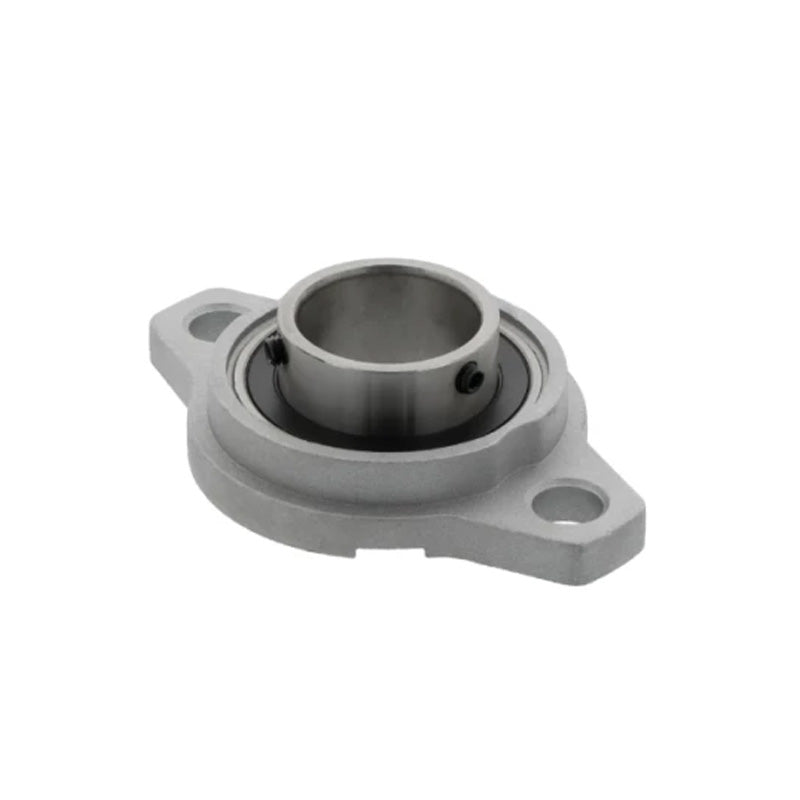

KFL005 Aluminium 2 Bolt Oval Bearing with Grub Screws 25mm Bore
KFL005 Aluminium 2 Bolt Oval Bearing with Grub Screws 25mm Bore
Regular price
€12,05
ex VAT
Regular price
Sale price
€12,05
ex VAT
In stock
Price Break
3+
€9,18
4+
€8,66
9+
€8,56
19+
€8,45
49+
€8,35
99+
€8,25
499+
€7,73
999+
€7,63
1999+
€7,53
2999+
€7,42
4999+
€7,22
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- KFL
- Bolt Hole Centres:
- 75mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 95mm |
| e | 75mm |
| g | 8mm |
| l | 16mm |
| N | 10mm |
| b | 60mm |
| n | 6mm |
| Bi | 22.5mm |
| t | 27.5mm |
| z | 24.5mm |
| Recommended fixing screw | M8 |
| Weight | 0.27 kg |
| Dynamic load | 10094 N ~ 1029.302 kgf |
| Static load | 5831 N ~ 594.597 kgf |
