SKU: KFL003

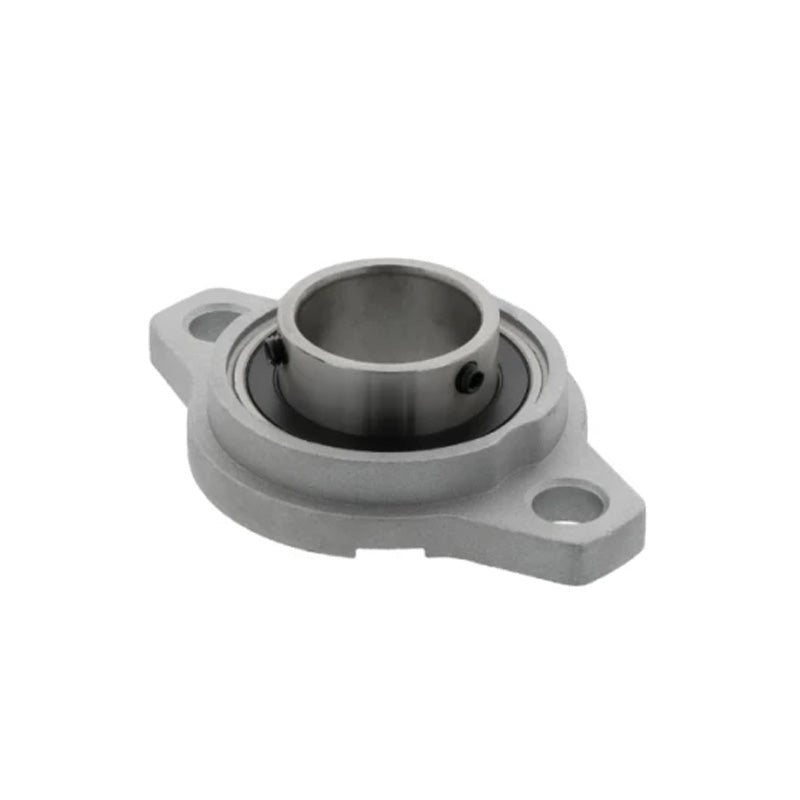

KFL003 Aluminium 2 Bolt Oval Bearing with Grub Screws 17mm Bore
KFL003 Aluminium 2 Bolt Oval Bearing with Grub Screws 17mm Bore
Regular price
€9,82
ex VAT
Regular price
Sale price
€9,82
ex VAT
In stock
Price Break
10+
€8,74
19+
€8,25
29+
€8,15
39+
€8,05
49+
€7,95
74+
€7,86
99+
€7,37
199+
€7,27
249+
€7,17
499+
€7,07
999+
€6,87
Couldn't load pickup availability
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- KFL
- Bolt Hole Centres:
- 56mm
Technical
Technical
| d | 17mm |
|---|---|
| a | 71mm |
| e | 56mm |
| g | 7mm |
| l | 14mm |
| N | 7mm |
| b | 46mm |
| n | 5mm |
| Bi | 17.5mm |
| t | 23mm |
| z | 19.5mm |
| Recommended fixing screw | M6 |
| Weight | 0.14 kg |
| Dynamic load | 5978 N ~ 609.586 kgf |
| Static load | 3283 N ~ 334.773 kgf |
