SKU: KBS20-PP-INA

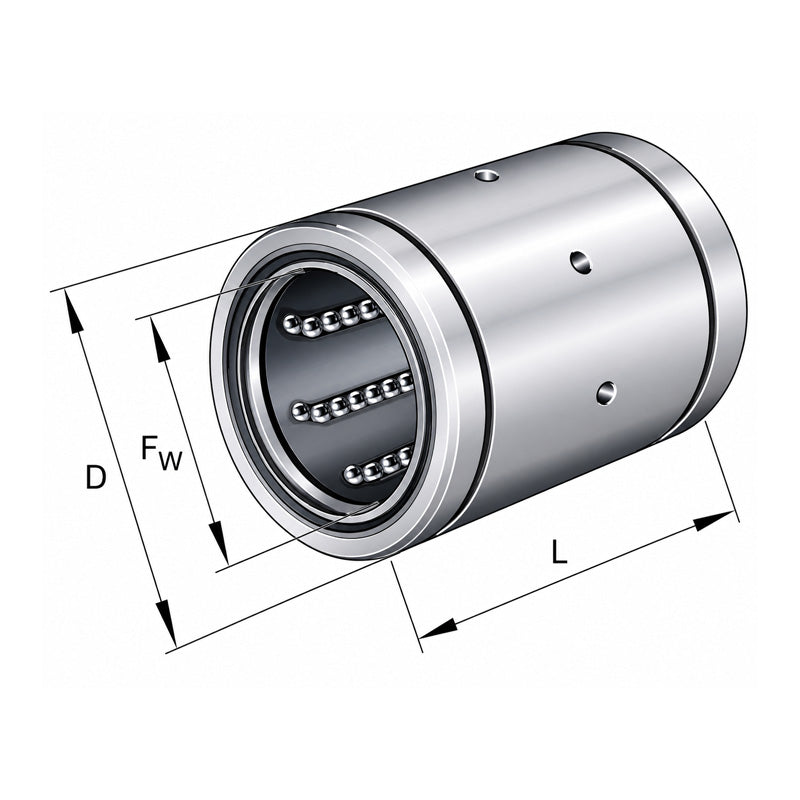

INA KBS20PP Linear Ball Bushing with Contact Seals 20x32x45mm
INA KBS20PP Linear Ball Bushing with Contact Seals 20x32x45mm
Regular price
€78,69
ex VAT
Regular price
Sale price
€78,69
ex VAT
In stock
Price Break
3+
€59,93
5+
€56,57
10+
€55,89
15+
€55,22
20+
€54,55
30+
€53,87
40+
€50,51
50+
€49,83
60+
€49,16
75+
€48,48
100+
€47,14
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 45mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 32mm |
| L | 45mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.6mm |
| DN | 30.3mm |
| L2 | 31.2mm |
| Mass | 0.09 kg |
| Basic dynamic load rating C min | 1570 N |
| Basic static load rating C0 min | 1230 N |
| Basic dynamic load rating C max | 1660 N |
| Basic static load rating C0 max | 1570 N |
