SKU: KBS12-PP-INA

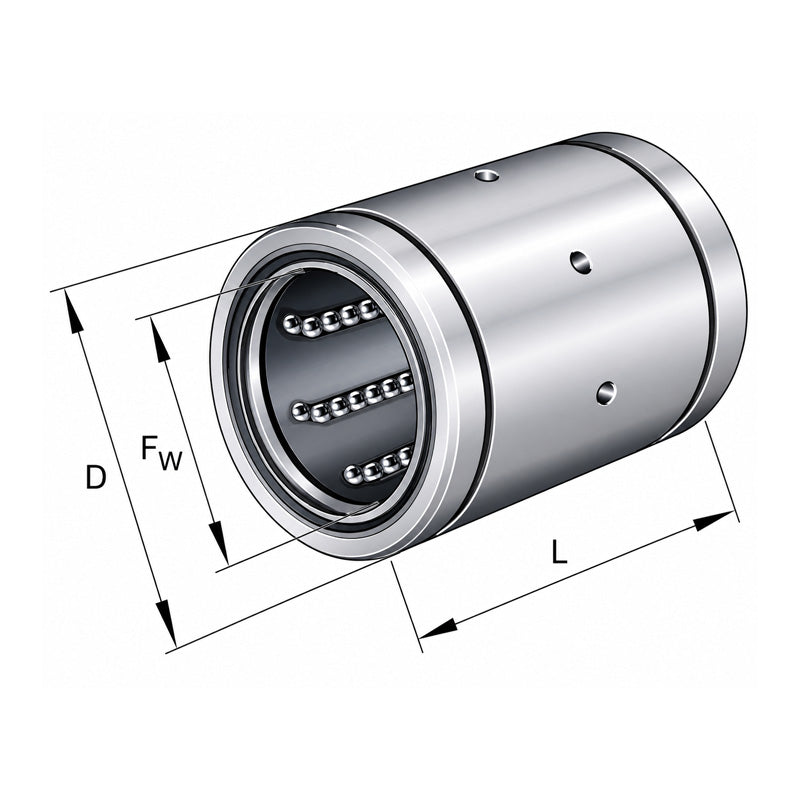

INA KBS12PP Linear Ball Bushing with Contact Seals 12x22x32mm
INA KBS12PP Linear Ball Bushing with Contact Seals 12x22x32mm
Regular price
€61,44
ex VAT
Regular price
Sale price
€61,44
ex VAT
In stock
Price Break
3+
€46,80
5+
€44,17
10+
€43,64
15+
€43,12
20+
€42,59
30+
€42,06
40+
€39,44
50+
€38,91
60+
€38,38
75+
€37,86
100+
€36,81
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 22mm
- Width:
- 32mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 22mm |
| L | 32mm |
| Numer of rows of balls | 5 |
| B3 | 1mm |
| BL2 | 1.3mm |
| DN | 21mm |
| L2 | 22.6mm |
| Mass | 0.04 kg |
| Basic dynamic load rating C min | 540 N |
| Basic static load rating C0 min | 385 N |
| Basic dynamic load rating C max | 640 N |
| Basic static load rating C0 max | 570 N |
