SKU: KB30-PP-INA

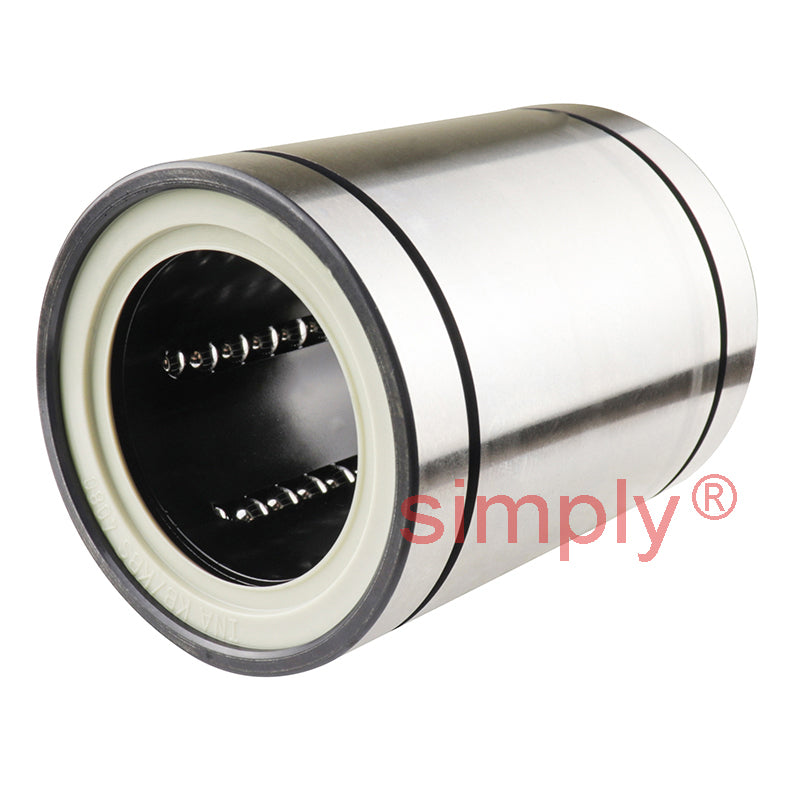

INA KB30PP Closed Linear Ball Bushing with Contact Seals 30x47x68mm
INA KB30PP Closed Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
€112,39
ex VAT
Regular price
Sale price
€112,39
ex VAT
In stock
Price Break
10+
€100,03
19+
€94,41
29+
€93,28
39+
€92,16
49+
€91,04
74+
€89,91
99+
€84,29
199+
€83,17
249+
€82,04
499+
€80,92
999+
€78,67
Couldn't load pickup availability
Description
Description
|
INA KB..-PP Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
