SKU: K32x39x16-EU

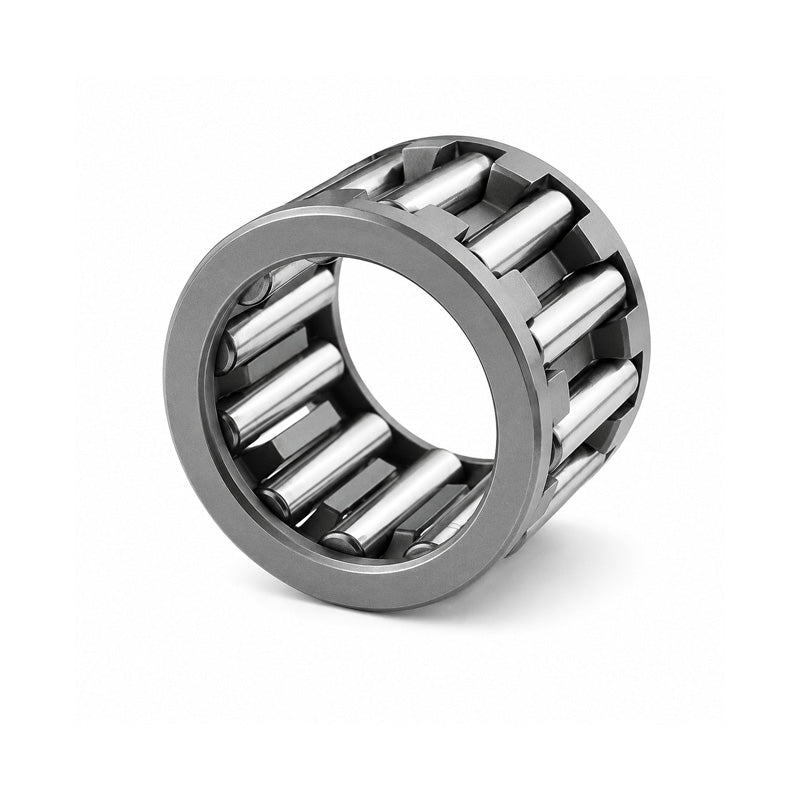

K32x39x16 Budget Needle Roller Cage Assembly 32x39x16mm
K32x39x16 Budget Needle Roller Cage Assembly 32x39x16mm
Regular price
€8,39
ex VAT
Regular price
Sale price
€8,39
ex VAT
Equivalent to: KT323916
In stock
Price Break
10+
€6,39
19+
€6,03
29+
€5,96
39+
€5,89
49+
€5,82
74+
€5,74
99+
€5,39
199+
€5,31
249+
€5,24
499+
€5,17
999+
€5,03
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT323916
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 39mm
- Width:
- 16mm
Technical
Technical
| Fw | 32mm |
|---|---|
| Ew | 39mm |
| U | 16mm |
| Dynamic load C | 22900 N |
| Static load Co | 35500 N |
| Fatigue load limit Pu | 4250 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| Weight | 37 g |
