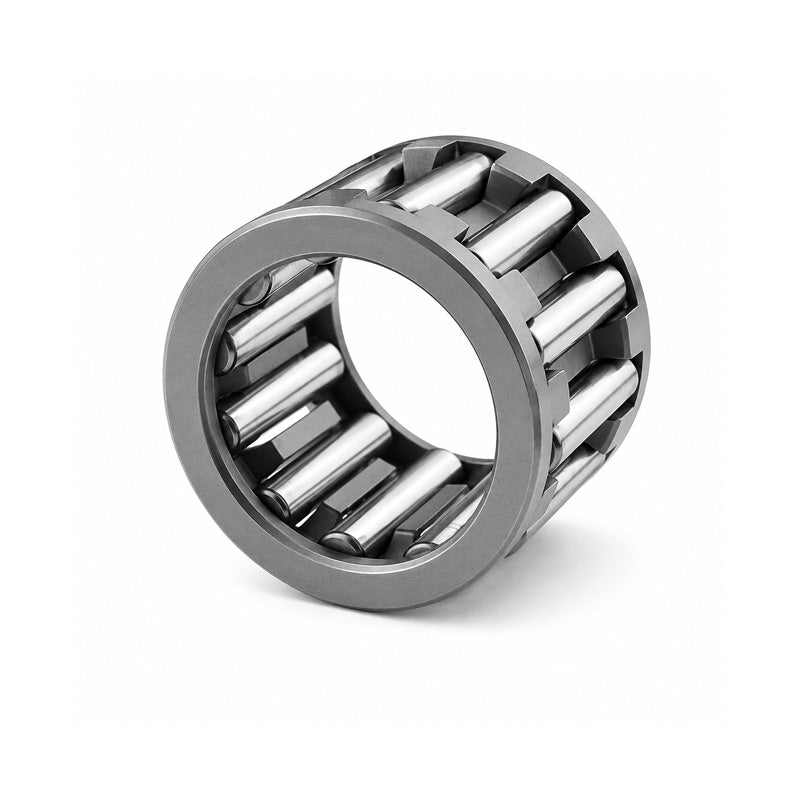

INA K130X137X24 Needle Roller Cage Assembly 130x137x24mm
INA K130X137X24 Needle Roller Cage Assembly 130x137x24mm
Regular price
€97,41
ex VAT
Regular price
Sale price
€97,41
ex VAT
In stock
Price Break
10+
€86,69
19+
€81,82
29+
€80,85
39+
€79,88
49+
€78,90
74+
€77,93
99+
€73,06
199+
€72,08
249+
€71,11
499+
€70,14
999+
€68,19
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 137mm
- Width:
- 24mm
Technical
Technical
| Fw | 130mm |
|---|---|
| Ew | 137mm |
| U | 24mm |
| Dynamic load | 61000 N |
| Static load | 186000 N |
| Fatigue load limit Pu | 22700 N |
| Speed in grease | 2500 rpm |
| Speed in oil | 3650 rpm |
| Weight | 184 g |
