SKU: K006

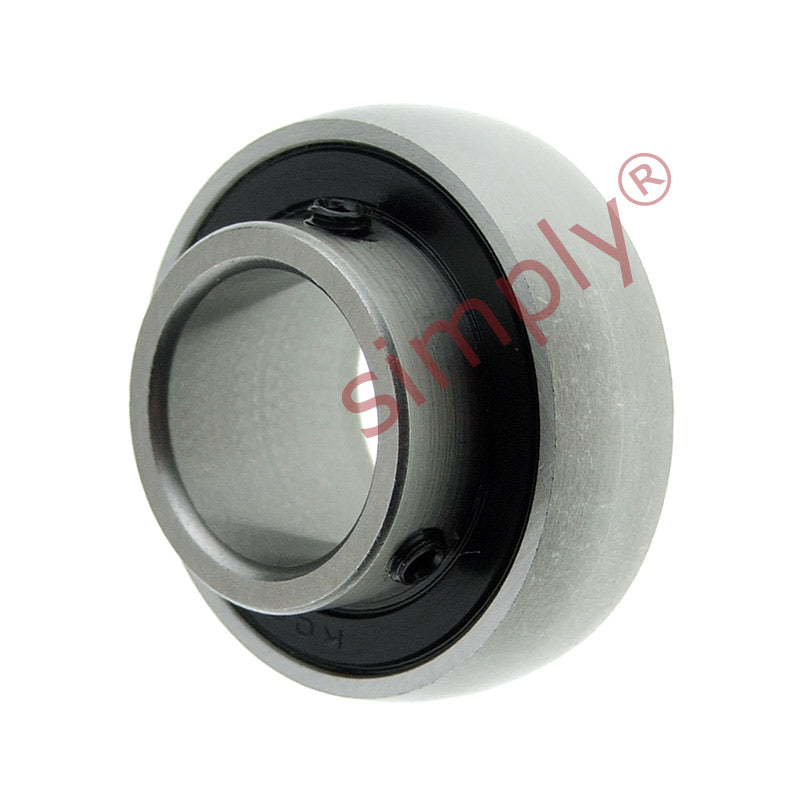

K006 Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
K006 Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
Regular price
€11,41
ex VAT
Regular price
Sale price
€11,41
ex VAT
In stock
Price Break
10+
€10,15
19+
€9,58
29+
€9,47
39+
€9,36
49+
€9,24
74+
€9,13
99+
€8,56
199+
€8,44
249+
€8,33
499+
€8,22
999+
€7,99
Couldn't load pickup availability
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Style:
- K
- Type:
- Spherical Outer
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 55mm |
| Bi | 24.5mm |
| Be | 13mm |
| r | 1.5mm |
| n | 6.5mm |
| G | 5mm |
| W | 38mm |
| Grub screw | M5X0.5 |
| Dynamic load | 13230N ~ 1349.085 kgf |
| Static load | 8281N ~ 844.427 kgf |
| Weight | 0.16 kg |
