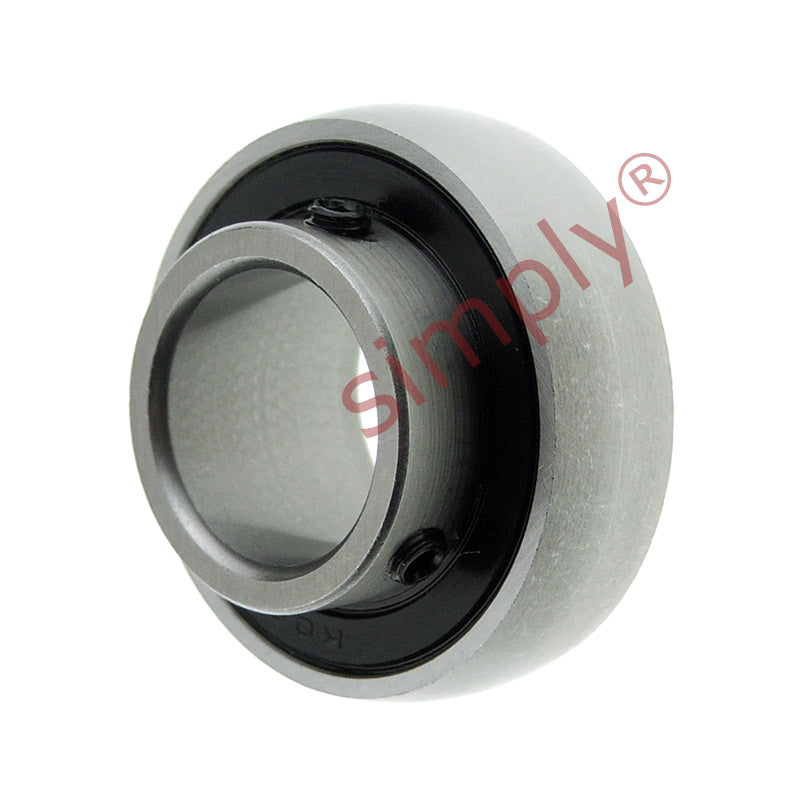

K000 Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
K000 Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
Regular price
€9,96
ex VAT
Regular price
Sale price
€9,96
ex VAT
In stock
Price Break
10+
€8,86
19+
€8,37
29+
€8,27
39+
€8,17
49+
€8,07
74+
€7,97
99+
€7,47
199+
€7,37
249+
€7,27
499+
€7,17
999+
€6,97
Couldn't load pickup availability
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Style:
- K
- Type:
- Spherical Outer
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 26mm |
| Bi | 14mm |
| Be | 8mm |
| r | 0.5mm |
| n | 4mm |
| G | 3mm |
| W | 14.75mm |
| Grub screw | M3x0.35 |
| Dynamic load | 4606N ~ 469.681 kgf |
| Static load | 1906N ~ 194.358 kgf |
| Weight | 0.02 kg |
