SKU: JSC255SS316-JUB

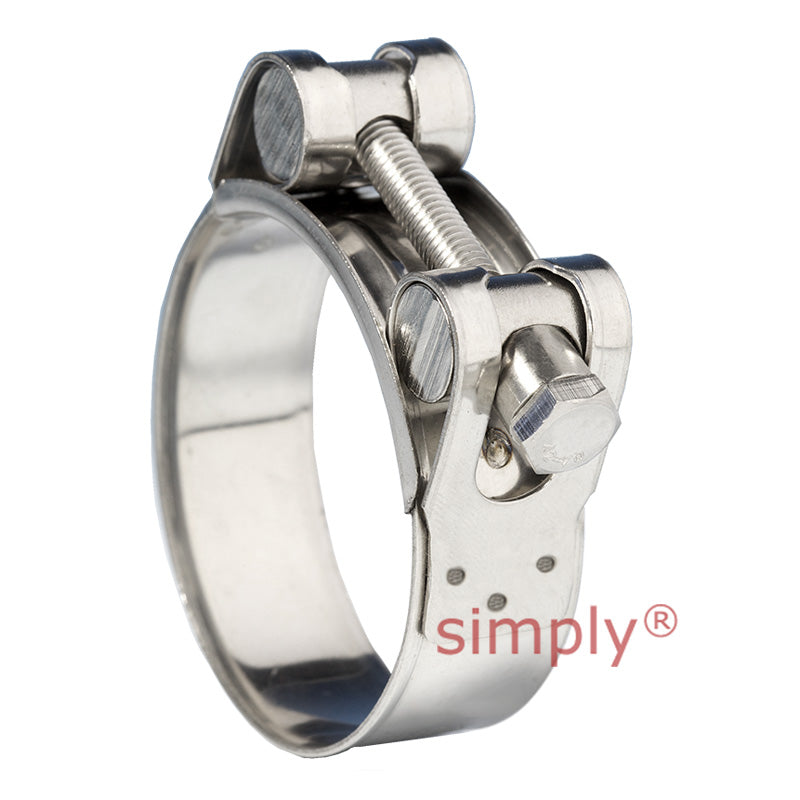

JSC255SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 240mm-255mm Band Width 25mm
JSC255SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 240mm-255mm Band Width 25mm
Regular price
€36,20
ex VAT
Regular price
Sale price
€36,20
ex VAT
Low stock
Price Break
5+
€35,84
10+
€34,39
20+
€33,67
50+
€32,58
100+
€31,86
500+
€30,05
1000+
€25,34
Couldn't load pickup availability
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 240mm
- Max Adjustment Range:
- 255mm
Technical
Technical
| Adjustment Range | 240mm - 255mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
