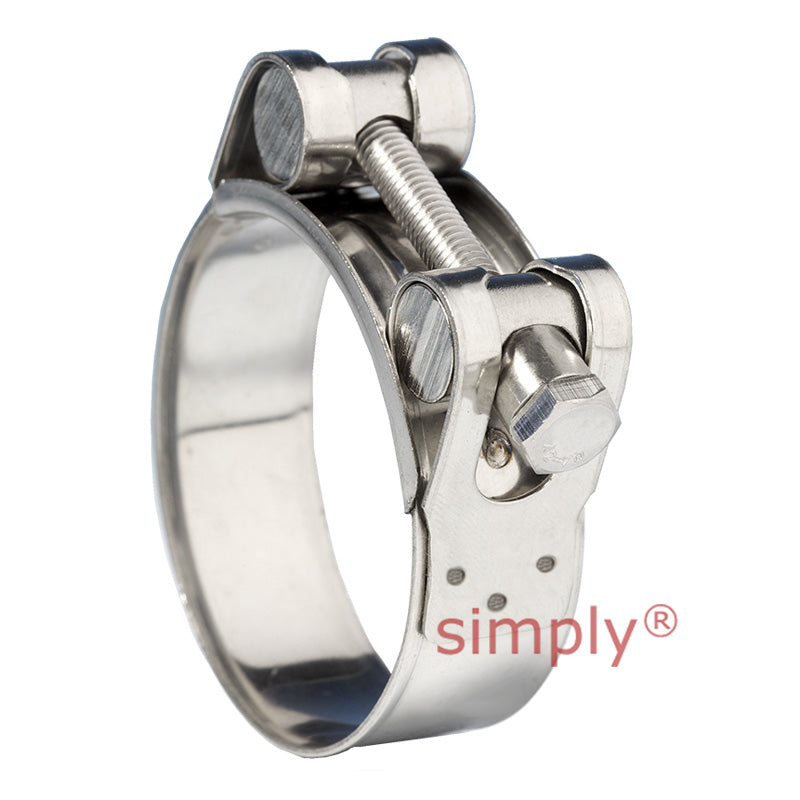

JSC161SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 149mm-161mm Band Width 25mm
JSC161SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 149mm-161mm Band Width 25mm
Regular price
€25,90
ex VAT
Regular price
Sale price
€25,90
ex VAT
In stock
Price Break
3+
€21,94
5+
€21,05
9+
€20,61
19+
€19,94
49+
€19,50
74+
€18,39
99+
€15,51
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 149mm
- Max Adjustment Range:
- 161mm
Technical
Technical
| Adjustment Range | 149mm - 161mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
