SKU: JSC028SS-JUB
JSC028SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 26mm-28mm Band Width 18mm
JSC028SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 26mm-28mm Band Width 18mm
Regular price
€5,26
ex VAT
Regular price
Sale price
€5,26
ex VAT
Low stock
Price Break
5+
€5,21
10+
€5,00
20+
€4,89
50+
€4,73
100+
€4,63
500+
€4,37
1000+
€3,68
Couldn't load pickup availability
Description
Description

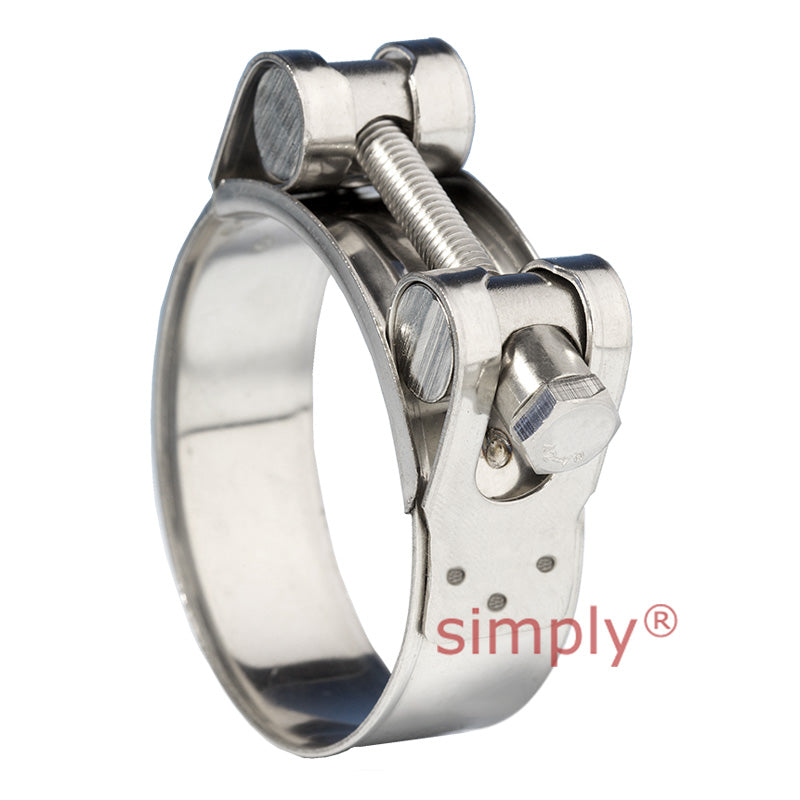

304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 18mm
- Min Adjustment Range:
- 26mm
- Max Adjustment Range:
- 28mm
Technical
Technical
| Adjustment Range | 26mm - 28mm |
|---|---|
| Band Width (+/- 0.1) | 18mm |
| Band Thickness (+/- 0.1) | 0.6mm |
| Recommended Torque | 4.5Nm |
| Maximum Torque | 6Nm |
| Screw Head | 8mm |
