SKU: HMV-56-EBF-HN-SNR

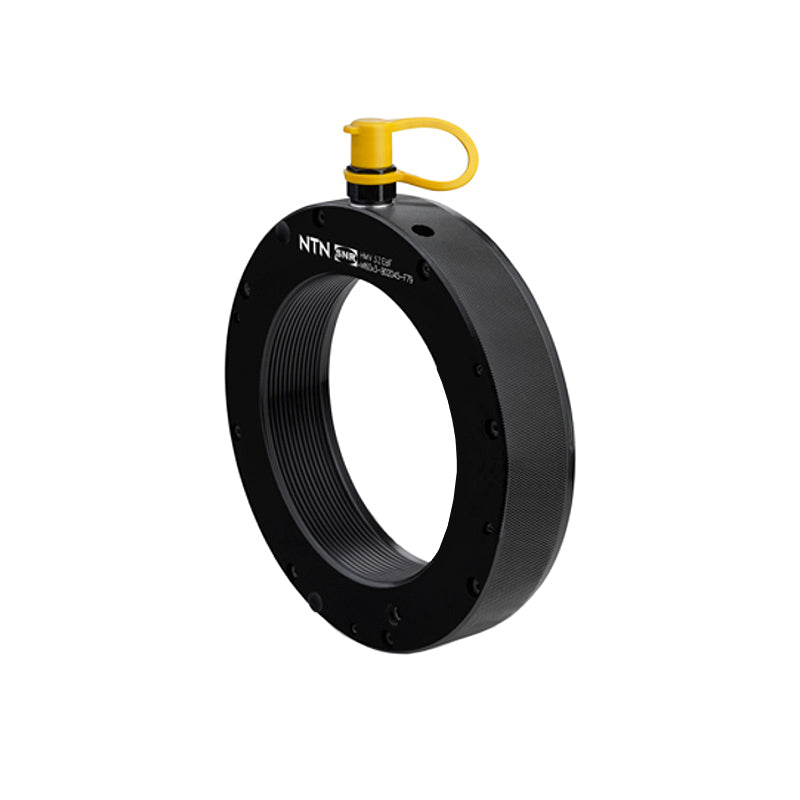

SNR HMV56 Metric Hydraulic Nut with Tr280x4 Thread - Allow 2-3 Days
SNR HMV56 Metric Hydraulic Nut with Tr280x4 Thread - Allow 2-3 Days
Regular price
€3.191,28
ex VAT
Regular price
Sale price
€3.191,28
ex VAT
In stock
Price Break
10+
€2.840,24
19+
€2.680,68
29+
€2.648,76
39+
€2.616,85
49+
€2.584,94
74+
€2.553,02
99+
€2.393,46
199+
€2.361,55
249+
€2.329,63
499+
€2.297,72
999+
€2.233,90
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr280x4
- Inside Diameter:
- 282mm
- Outside Diameter:
- 380mm
- Width:
- 58mm
- Flange Width:
- 9mm
Technical
Technical
| HMV | HMV56 |
|---|---|
| Thread G | Tr280x4 |
| Outside Diameter D | 380mm |
| Total Width B | 58mm |
| Piston Diameter max. d2 | 376mm |
| Permitted Piston Stroke | 12mm |
| Flange Width B1 | 9mm |
| Body Width B2 | 49mm |
| Diameter d1 | 282mm |
| Piston Surface Area | 21050mm2 |
| Weight | 22.2kg |
