SKU: HMV-36-EBF-HN-SNR

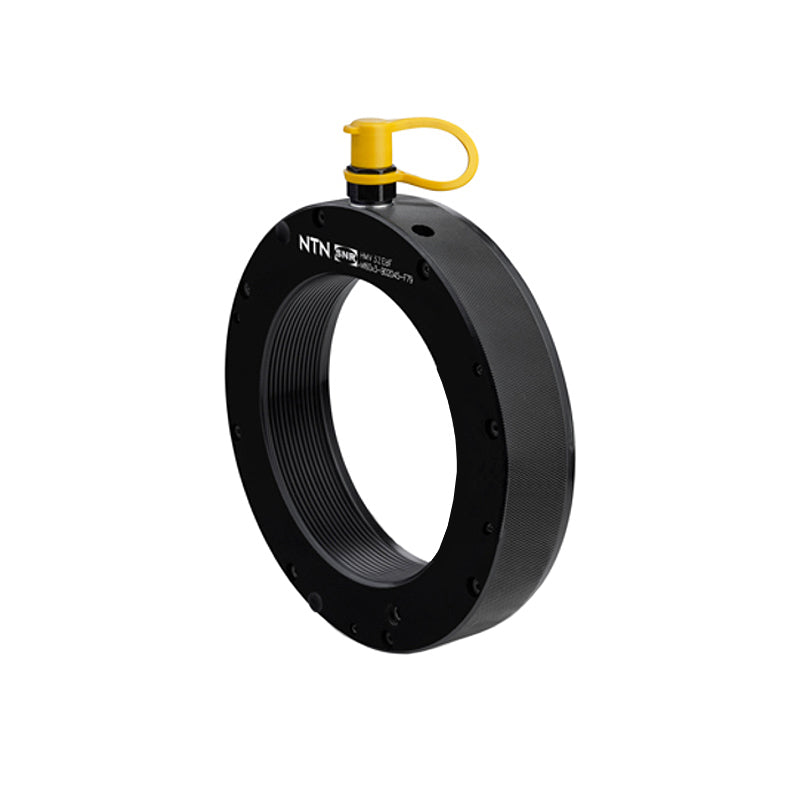

SNR HMV36 Metric Hydraulic Nut with M180x3 Thread - Allow 2-3 Days
SNR HMV36 Metric Hydraulic Nut with M180x3 Thread - Allow 2-3 Days
Regular price
€2.074,88
ex VAT
Regular price
Sale price
€2.074,88
ex VAT
In stock
Price Break
10+
€1.846,64
19+
€1.742,90
29+
€1.722,15
39+
€1.701,40
49+
€1.680,65
74+
€1.659,90
99+
€1.556,16
199+
€1.535,41
249+
€1.514,66
499+
€1.493,91
999+
€1.452,42
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M180x3
- Inside Diameter:
- 180.5mm
- Outside Diameter:
- 256mm
- Width:
- 48mm
- Flange Width:
- 7mm
Technical
Technical
| HMV | HMV36 |
|---|---|
| Thread G | M180x3 |
| Outside Diameter D | 256mm |
| Total Width B | 48mm |
| Piston Diameter max. d2 | 252mm |
| Permitted Piston Stroke | 6mm |
| Flange Width B1 | 7mm |
| Body Width B2 | 41mm |
| Diameter d1 | 180.5mm |
| Piston Surface Area | 11250mm2 |
| Weight | 9.4kg |
