SKU: HMK2520-NTN

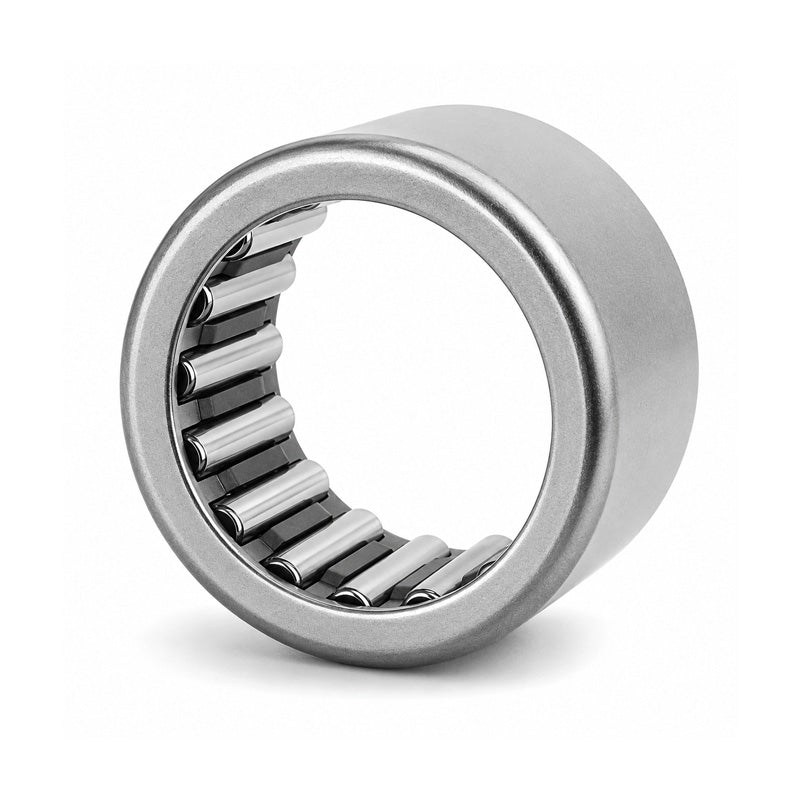

NTN HMK2520 Drawn Cup Needle Roller Bearing with Open End 25x33x20mm
NTN HMK2520 Drawn Cup Needle Roller Bearing with Open End 25x33x20mm
Regular price
€7,43
ex VAT
Regular price
Sale price
€7,43
ex VAT
Low stock
Price Break
10+
€6,61
19+
€6,24
29+
€6,17
39+
€6,09
49+
€6,02
74+
€5,94
99+
€5,57
199+
€5,50
249+
€5,42
499+
€5,35
999+
€5,20
Couldn't load pickup availability
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 33mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 25mm |
|---|---|
| D - Outside diameter | 33mm |
| C - Width of bearing, drawn cup or outer ring | 20mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR20X25X20.5 |
| Cr - Dynamic load rating | 21.8 kN |
| C0r - Static load rating | 31.5 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 9500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
