SKU: HMK1626CLLT/3AS-NTN

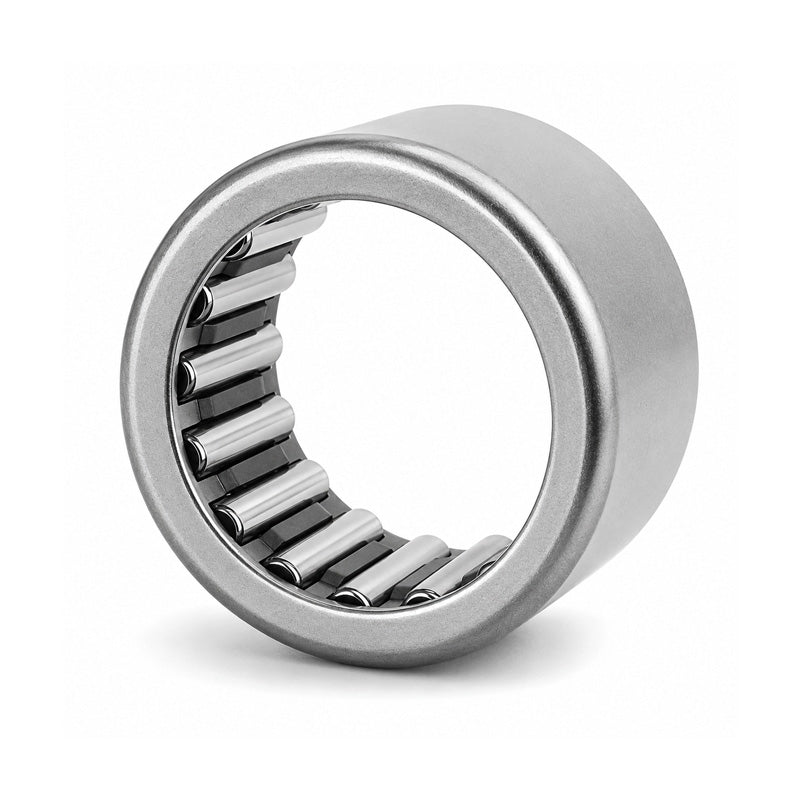

NTN HMK1626CLLT/3AS Drawn Cup Needle Roller Bearing with Open End 16x24x26mm - Allow 2-3 Days
NTN HMK1626CLLT/3AS Drawn Cup Needle Roller Bearing with Open End 16x24x26mm - Allow 2-3 Days
Regular price
€14,40
ex VAT
Regular price
Sale price
€14,40
ex VAT
In stock
Price Break
10+
€12,82
19+
€12,10
29+
€11,95
39+
€11,81
49+
€11,66
74+
€11,52
99+
€10,80
199+
€10,66
249+
€10,51
499+
€10,37
999+
€10,08
Couldn't load pickup availability
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 26mm
Technical
Technical
| Fw - Inside diameter | 16mm |
|---|---|
| D - Outside diameter | 24mm |
| C2 - Width of drawn cup LL | 26mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 15.6 kN |
| C0r - Static load rating | 18.2 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
