SKU: HK5528-EU

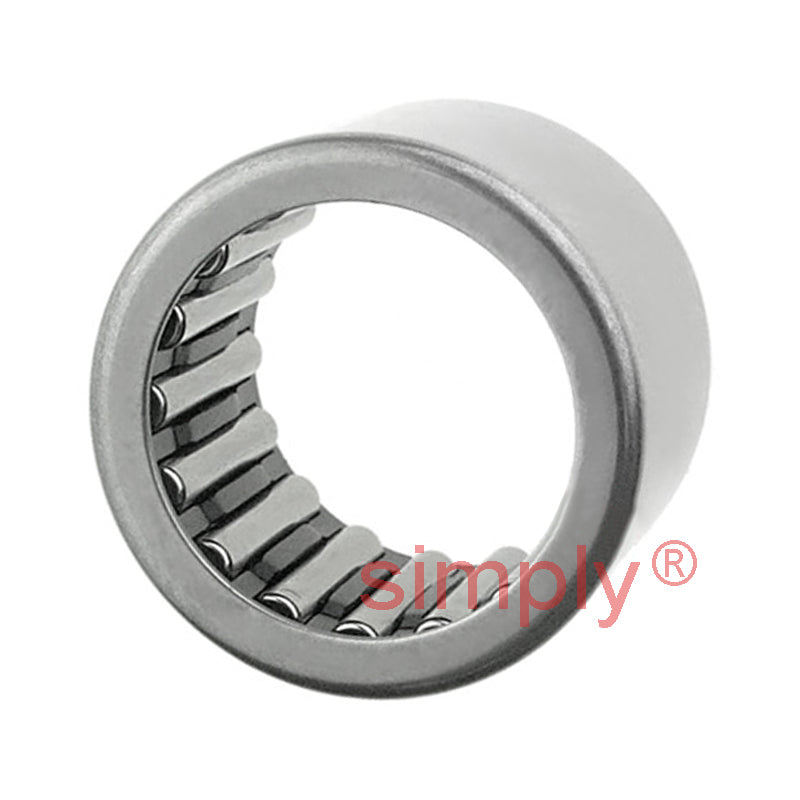

HK5528 Budget Drawn Cup Type Needle Roller Bearing Open End Type 55x63x28mm
HK5528 Budget Drawn Cup Type Needle Roller Bearing Open End Type 55x63x28mm
Regular price
€9,65
ex VAT
Regular price
Sale price
€9,65
ex VAT
In stock
Price Break
10+
€8,59
19+
€8,11
29+
€8,01
39+
€7,91
49+
€7,82
74+
€7,72
99+
€7,24
199+
€7,14
249+
€7,04
499+
€6,95
999+
€6,76
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 63mm
- Width:
- 28mm
Technical
Technical
| Fw | 55mm |
|---|---|
| D | 63mm |
| C | 28mm |
| Dynamic load C | 41800 N |
| Static load Co | 104000 N |
| Fatigue load limit Pu | 12900 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| r1r2 min | 0.8mm |
| Da max | 58mm |
| ra max | 0.8mm |
| Weight | 11 g |
