SKU: HK5024LLD/3AS-NTN

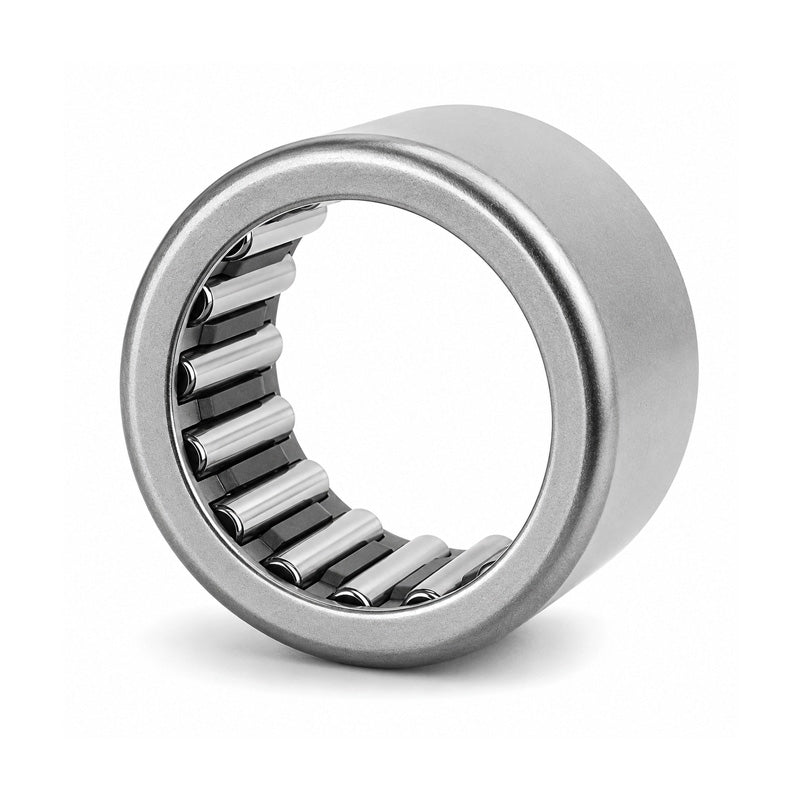

NTN HK5024LLD/3AS Drawn Cup Needle Roller Bearing with Open End 50x58x24mm - Allow 2-3 Days
NTN HK5024LLD/3AS Drawn Cup Needle Roller Bearing with Open End 50x58x24mm - Allow 2-3 Days
Regular price
€12,92
ex VAT
Regular price
Sale price
€12,92
ex VAT
In stock
Price Break
3+
€10,95
4+
€10,51
9+
€10,29
19+
€9,95
49+
€9,73
99+
€9,18
499+
€7,74
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 58mm
- Width:
- 24mm
Technical
Technical

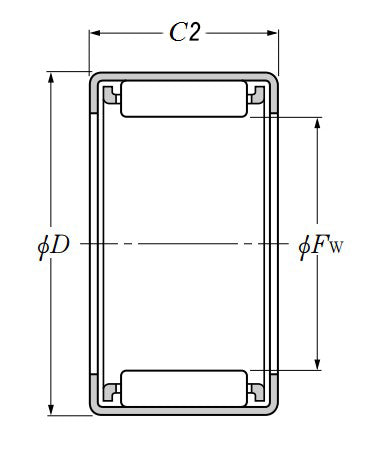

| Fw - Inside diameter | 50mm |
|---|---|
| D - Outside diameter | 58mm |
| C2 - Width of drawn cup LL | 24mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 3mm |
| Inner ring reference | IR45X50X25.5 |
| Cr - Dynamic load rating | 31.5 kN |
| C0r - Static load rating | 63 kN |
| N - Grease lubrication limit speed | 3200 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
