SKU: HK4512-EU

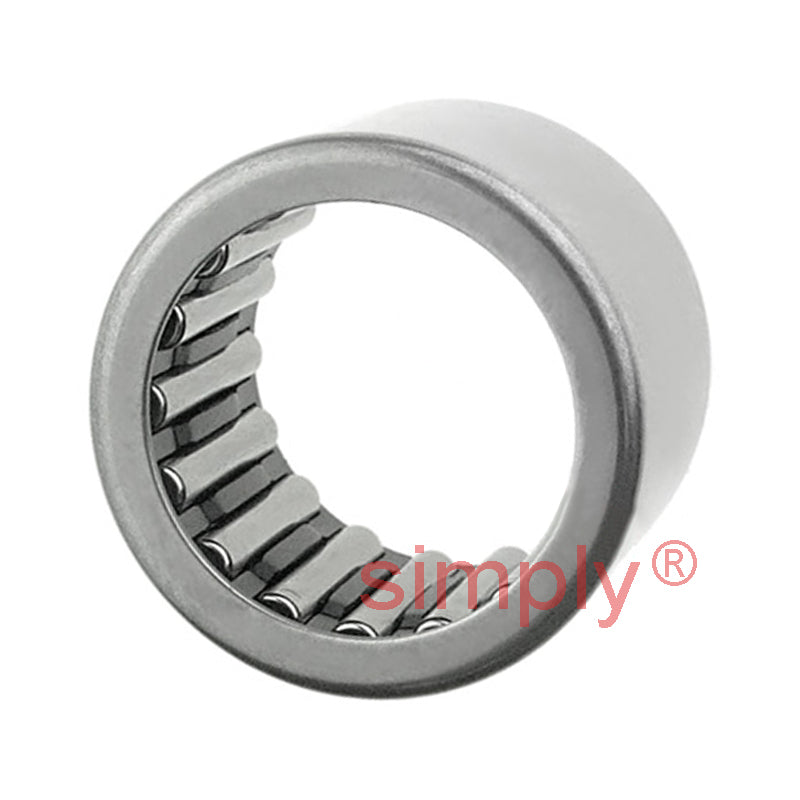

HK4512 Budget Drawn Cup Type Needle Roller Bearing Open End Type 45x52x12mm
HK4512 Budget Drawn Cup Type Needle Roller Bearing Open End Type 45x52x12mm
Regular price
€11,24
ex VAT
Regular price
Sale price
€11,24
ex VAT
In stock
Price Break
10+
€8,56
19+
€8,08
29+
€7,98
39+
€7,89
49+
€7,79
74+
€7,70
99+
€7,22
199+
€7,12
249+
€7,02
499+
€6,93
999+
€6,73
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 52mm
- Width:
- 12mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 52mm |
| C | 12mm |
| Dynamic load C | 14200 N |
| Static load Co | 27500 N |
| Fatigue load limit Pu | 3200 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| r1r2 min | 0.8mm |
| Da max | 47mm |
| ra max | 0.8mm |
| Seal | G/SD45x52x4 |
| Weight | 33 g |
