SKU: HK4012-EU

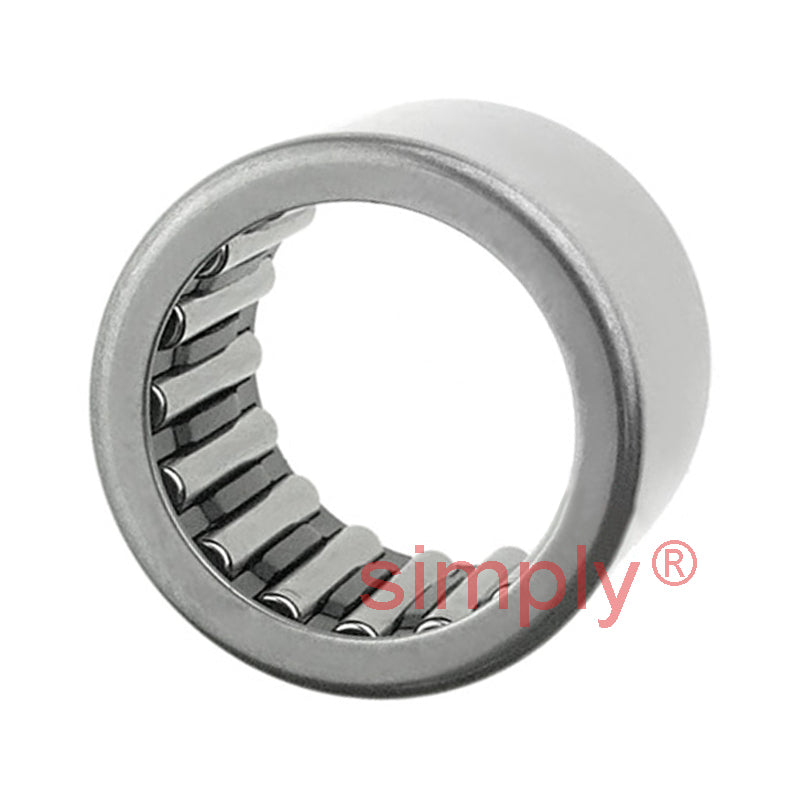

HK4012 Budget Drawn Cup Type Needle Roller Bearing Open End Type 40x47x12mm
HK4012 Budget Drawn Cup Type Needle Roller Bearing Open End Type 40x47x12mm
Regular price
€8,55
ex VAT
Regular price
Sale price
€8,55
ex VAT
Equivalent to: TLA4012Z RHNA404712
In stock
Price Break
10+
€6,52
19+
€6,15
29+
€6,08
39+
€6,00
49+
€5,93
74+
€5,86
99+
€5,49
199+
€5,42
249+
€5,34
499+
€5,27
999+
€5,12
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA4012Z RHNA404712
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 47mm |
| C | 12mm |
| Dynamic load C | 13400 N |
| Static load Co | 24500 N |
| Fatigue load limit Pu | 2800 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| r1r2 min | 0.8mm |
| Da max | 42mm |
| ra max | 0.8mm |
| Weight | 30 g |
