SKU: HK3020LL/3AS-NTN

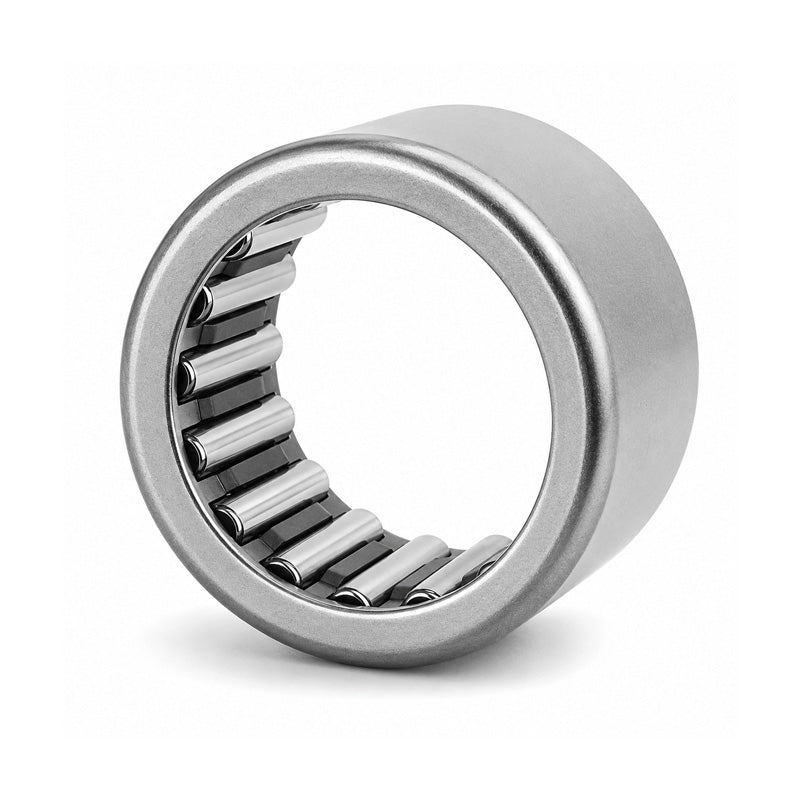

NTN HK3020LL/3AS Drawn Cup Needle Roller Bearing with Open End 30x37x20mm

NTN HK3020LL/3AS Drawn Cup Needle Roller Bearing with Open End 30x37x20mm
Regular price €9,40 ex VAT
Regular price Sale price €9,40 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,16
4+ €6,75
9+ €6,67
19+ €6,59
49+ €6,51
99+ €6,43
499+ €6,03
999+ €5,95
1999+ €5,87
2999+ €5,79
4999+ €5,63
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 30mm
D - Outside diameter 37mm
C2 - Width of drawn cup LL 20mm
C3 - Max drawn cup closed end thickness LL 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR25X30X23
Cr - Dynamic load rating 18.1 kN
C0r - Static load rating 30 kN
N - Grease lubrication limit speed 5500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
